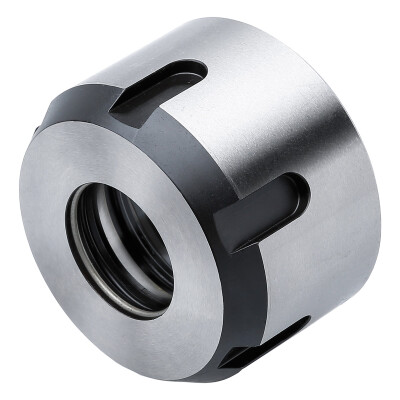

Clamping nut for sealing discs, ISO 10897 (DIN 6388)

113.01.16

EAN-code: 4250001003166

OZ
ISO 10897 (DIN 6388)

VAT 0% 70,00 €

Checking availability

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Application:
For sealing tools with internal cooling in collet chucks DIN 6391, OZ-system.

Description Symbol Value

Fig

Malli

ISO 10897

Type

415E, OZ 16

Clamping Ø, nominal, workpc. side

DCONWS

2 - 16

Diameter lock nut

DLN

43 mm

Torque maximum

TQX

85 Nm

Connection thread nominal size

THSZMS

M33 × 1,5

Lock nut height

HLN

31.5
