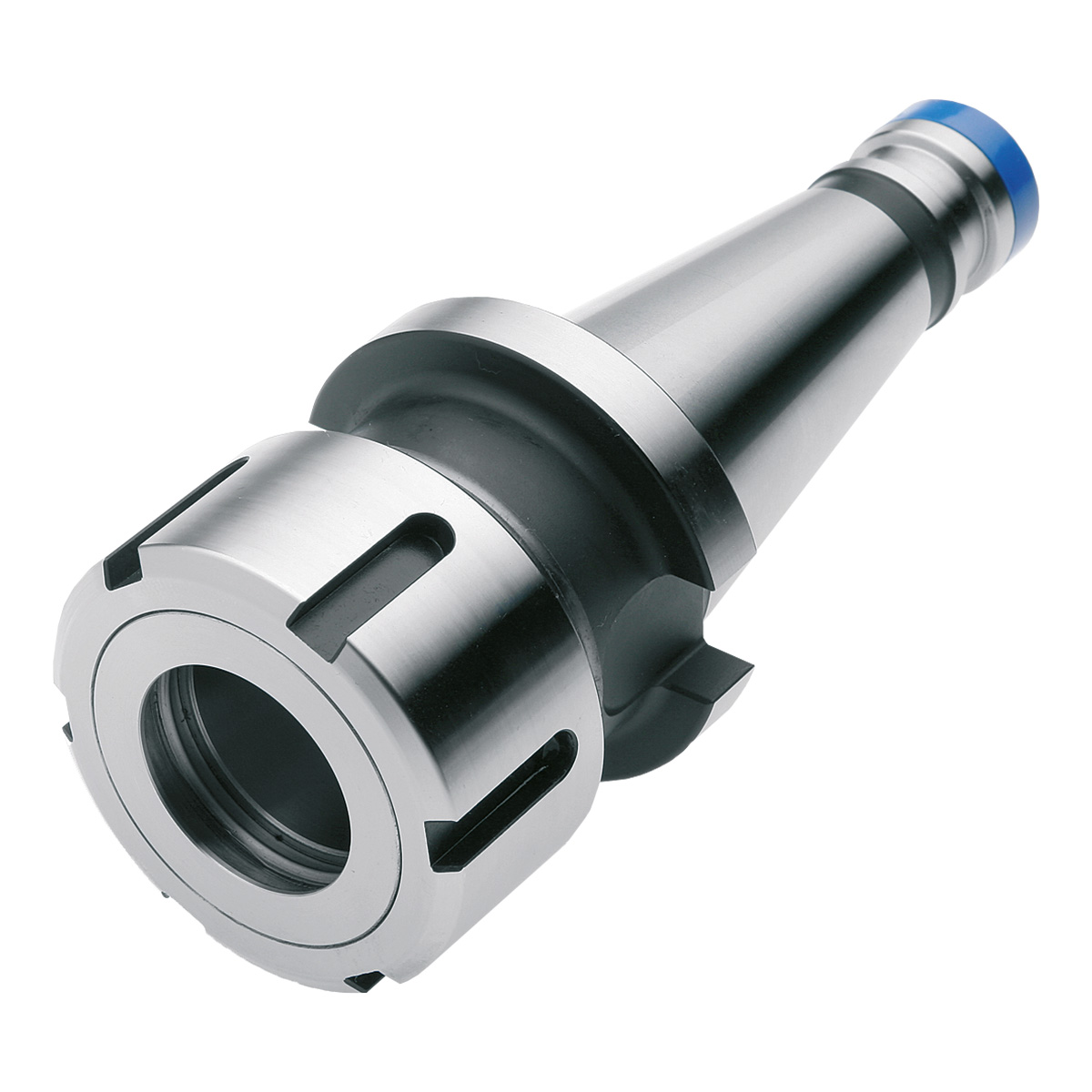

OZ-Collet chuck, DIN 2080
301.01.16
EAN-code: 4250001015848
SK 30 - OZ
DIN 2080
DIN 2080
VAT 0%
80,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting straight-shank tools in collets.
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Technical details
Enlarge
- Models
- 301 01 16 D 3D Zeichnung
Description
Symbol
Value
Type
415E, OZ 16
Adaptive interface machine direction
ADINTMS
DIN 2080
Adaptive interface workpiece direction
ADINTWS
ISO 10897 (DIN 6388) OZ
Balance grade
G6,3 | 15.000 1/min
Coolant entry style
CNSC
AD
Clamping Ø, nominal, workpc. side
DCONWS
2 - 16
Diameter lock nut
DLN
43 mm
Protruding length
LPR
50 mm
Concentricity
< 3µm
SK
SK 30
Thread designation inside
THID
M16 x 2,0
