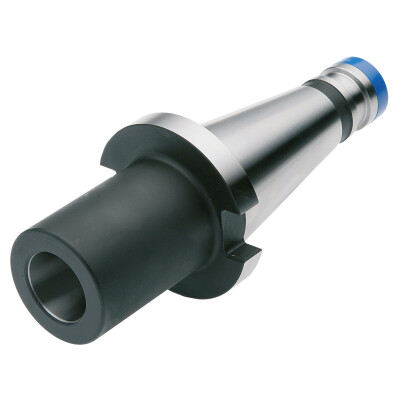

Morse taper adaptor, DIN 2080
401.08.03
EAN-code: 4250001004736
SK 40
DIN 2080
DIN 2080
VAT 0%
75,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For clamping tools with Morse taper shank and thread according to DIN 228-1 form A.
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
for MT with drawbar thread DIN 6364
Technical details
Enlarge
- Models
- 401 08 03 D 3D Zeichnung
Description
Symbol
Value
Body diameter
BD
40 mm
Adaptive interface machine direction
ADINTMS
DIN 2080
Adaptive interface workpiece direction
ADINTWS
DIN 6364
Balance grade
G6,3 | 15.000 1/min
Coolant entry style
CNSC
A
Connection text workpiece side
CTWS
3
Protruding length
LPR
65 mm
Concentricity
< 5µm
SK
SK 40
Thread designation inside
THID
M12
