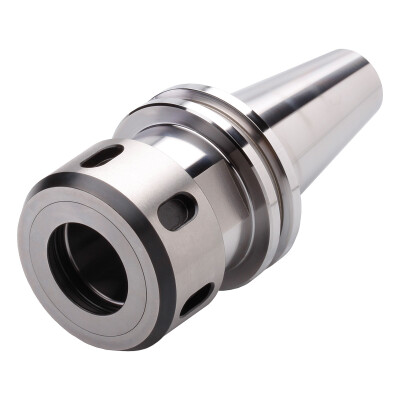

OZ-Collet chuck, ISO 7388-1 [DIN 69871 AD]
402.61.25
EAN-code: 4250001067199
SK 40 - 2/25 - 63, OZ 25
ISO 7388-1 AD [DIN 69871 AD]
ISO 7388-1 AD [DIN 69871 AD]
VAT 0%
171,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting straight-shank tools for woodworking in collets.
Delivery:
With ball bearing clamping nut
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
without drive slots
Technical details
Description
Symbol
Value
Body material code
BMC
false
Body diameter
BD
false mm
Type
462E, OZ 25
Mounting Ø, machine side
DCONMS
false mm
Overall length
OAL
false mm
Adaptive interface machine direction
ADINTMS
ISO 7388-1 (DIN 69871)
Adaptive interface workpiece direction
ADINTWS
ISO 10897 (DIN 6388) OZ
Balance grade
G2,5 | 25.000 1/min
Adjustment range, axial
ADJRGA
false
Body diameter 1
BD1
false mm
Body diameter 2
BD2
false mm
Body half taper angle
BHTA
false
Body taper end diameter
BTED
false
Coolant entry style
CNSC
AD
Pull stud thread size
CRKS
false
Connection text workpiece side
CTWS
false
Coolant exit style
CXSC
false
Clamping Ø, nominal, workpc. side
DCONWS
2 - 25
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Diameter lock nut
DLN
60 mm
Drive size
DRVS
false
Body length
LB
false mm
Body length 1
LB1
false mm
Body length 2
LB2
false mm
Length body diameter 1
LBD1
false mm
Length compensation compression
LCOMP
false mm
Functional length
LF
false mm
Functional length 1
LF1
false mm
Functional length 2
LF2
false mm
Protruding length
LPR
63 mm
Clamping length minimum machine side
LSCN
false mm
Clamping length maximum machine side
LSCX
false mm
Concentricity
< 3µm
SK
SK 40
Capacity
false
Nominal size
SZID
false
Tolerance class connection diameter
TDCON
false
Thread designation inside
THID
M16 x 2,0
Connection thread nominal size workpiece side
THSZWS
false
Torque maximum
TQX
false Nm
Tap range max
TRMAX
false
