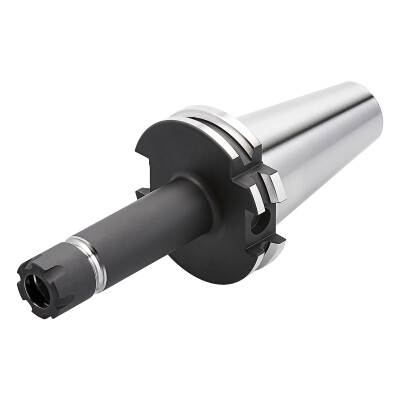

ER-Collet chuck, ISO 7388-1 [DIN 69871 AD/B]

403.02.07.13

EAN-code: 4250001164041

SK 40 - ER, Mini
ISO 7388-1 AD/B [DIN 69871 AD/B]

VAT 0% 110,00 €

Checking availability

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

Application:
For mounting straight-shank tools in collets.

Delivery:
With ER-Mini-nut

All holders are made of forged steel
Specific, low warpage hardened
Surface hardened HRC 58~60
Hardening depth 0,8mm~0,9mm
Taper angle tolerance < AT 3 according to DIN 2080
Surface roughness Ra < 0,4 µm
Tensile strength in the core of min. 800 N/mm² after DIN
All functional surfaces fine machined

with mini nut

Technical details

Enlarge

Models
403 02 07 13 D 3D Zeichnung

Description Symbol Value

Type

428E, ER 20

Adaptive interface machine direction

ADINTMS

ISO 7388-1 (DIN 69871)

Adaptive interface workpiece direction

ADINTWS

ISO 15488 (DIN 6499) ER

Balance grade

G2,5 | 25.000 1/min

Coolant entry style

CNSC

AD/B

Clamping Ø, nominal, workpc. side

DCONWS

2 - 13

Data chip provision

DCP

Kyllä

Data chip provision size

DCPS

D10/H4,5

Diameter lock nut

DLN

28 mm

Protruding length

LPR

70 mm

Concentricity

< 3µm

SK 40

Thread designation inside

THID

9/16“ 18 UNF
