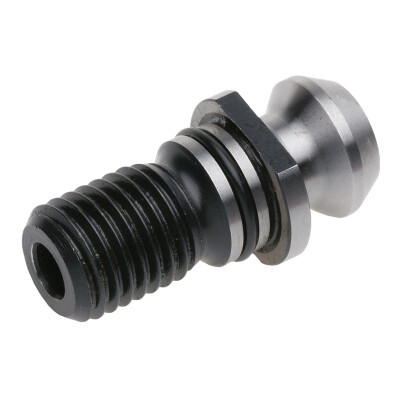

Pull studs CAT metric

404.20.16.21

EAN-code: 4250001075163

Form UD, with drill through, incl. O-ring

VAT 0% 7,00 €

Checking availability

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

Application:

For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT)
In machining centres (machines with automatic tool changers)
In NC machines (machines without automatic tool changers)

Technical details

Enlarge

Description Symbol Value

Standard

CAT metrinen

Taper size

Kartiokoko

Type

Mazak

Body diameter 1

BD1

18.8 mm

Body diameter 2

BD2

12.45 mm

Body half taper angle

BHTA

45°

Pull stud thread size

CRKS

M16

Drive size

DRVS

Body length 1

LB1

11.18 mm

Functional length

16.260000000000002 mm

Torque maximum

TQX

50 Nm Nm

Body diameter 4

BD4

17 mm

Coolant entry diameter

CND

7,0 mm

Shank form
