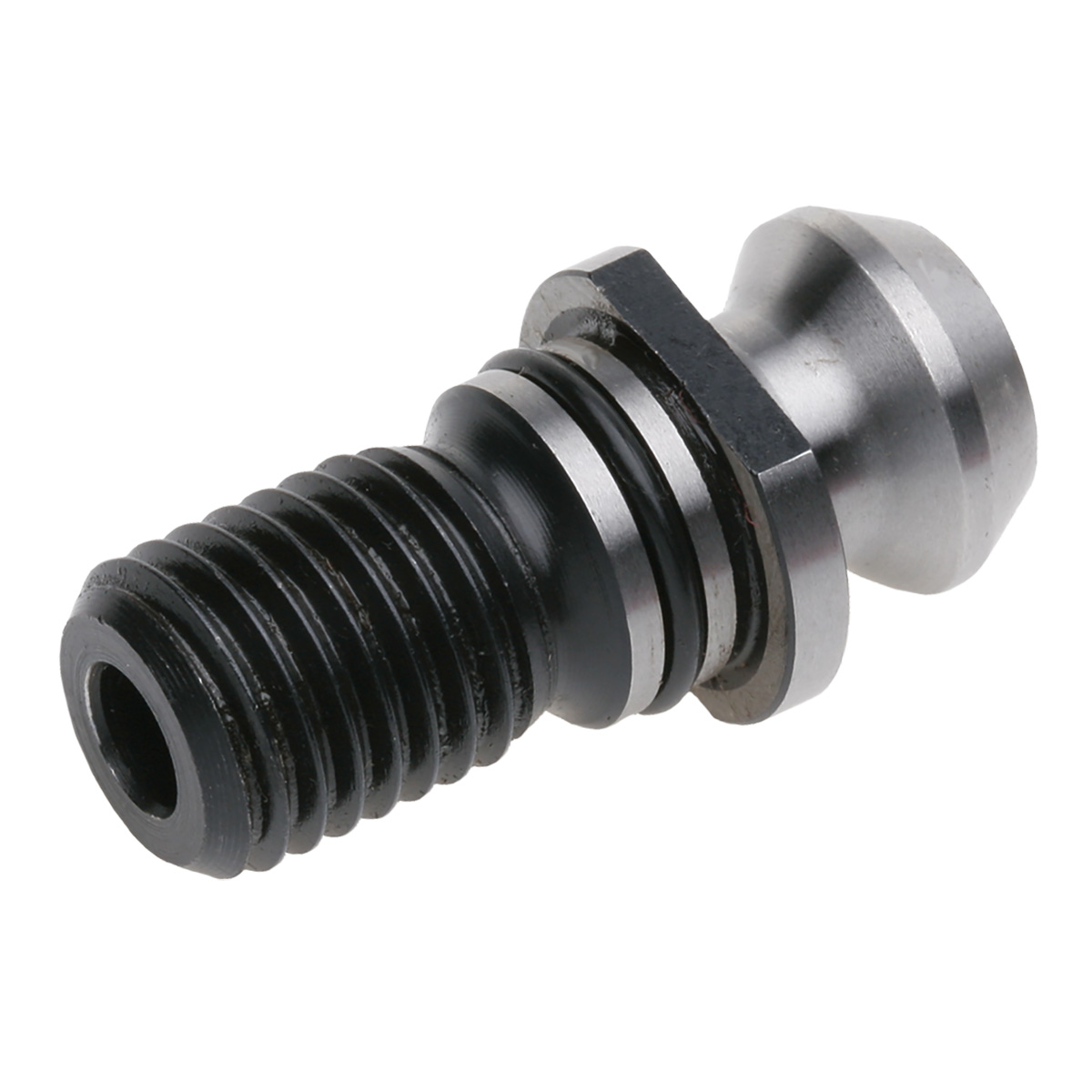

Pull studs CAT metric
404.20.16.22
EAN-code: 4250001075170
for high-pressure cooling
Form UD, with drill through, typ "MAZAK"
Form UD, with drill through, typ "MAZAK"
VAT 0%
11,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
- For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT)
- In machining centres (machines with automatic tool changers)
- In NC machines (machines without automatic tool changers)
incl. O-rings in the bore and the collar
Technical details
Description
Symbol
Value
Standard
CAT metrinen
Taper size
Kartiokoko
40
Body diameter 1
BD1
18.8 mm
Body diameter 2
BD2
12.45 mm
Body half taper angle
BHTA
45°
Pull stud thread size
CRKS
M16
Drive size
DRVS
19
Body length 1
LB1
11.18 mm
Functional length
LF
16.260000000000002 mm
Torque maximum
TQX
50 Nm Nm
Body diameter 4
BD4
17 mm
Coolant entry diameter
CND
7,0 mm
Shank form
UD
