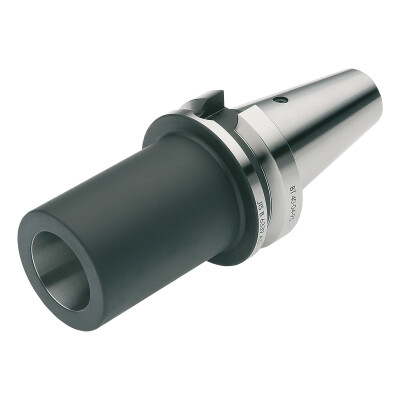

Morse taper adaptor, ISO 7388-2 [JIS B 6339 A]
505.08.02
EAN-code: 4250001012847
BT 50
ISO 7388-2 J [JIS B 6339 A]
ISO 7388-2 J [JIS B 6339 A]
VAT 0%
101,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For clamping tools with Morse taper shank and thread according to DIN 228-1 form A.
Delivery:
With built-in tightening bolt
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
for MT with drawbar thread DIN 6364
Technical details
Enlarge
- Models
- 505 08 02 D 3D Zeichnung
Description
Symbol
Value
Body diameter
BD
32 mm
Adaptive interface machine direction
ADINTMS
ISO 7388-2 (MAS-BT)
Adaptive interface workpiece direction
ADINTWS
DIN 6364
Balance grade
G6,3 | 15.000 1/min
Coolant entry style
CNSC
AD
Connection text workpiece side
CTWS
2
Protruding length
LPR
60 mm
Concentricity
< 5µm
SK
BT 50
Thread designation inside
THID
M10
