Precision collet set, radial run-out of

701.470ECP.1

EAN-code: 4250001167394

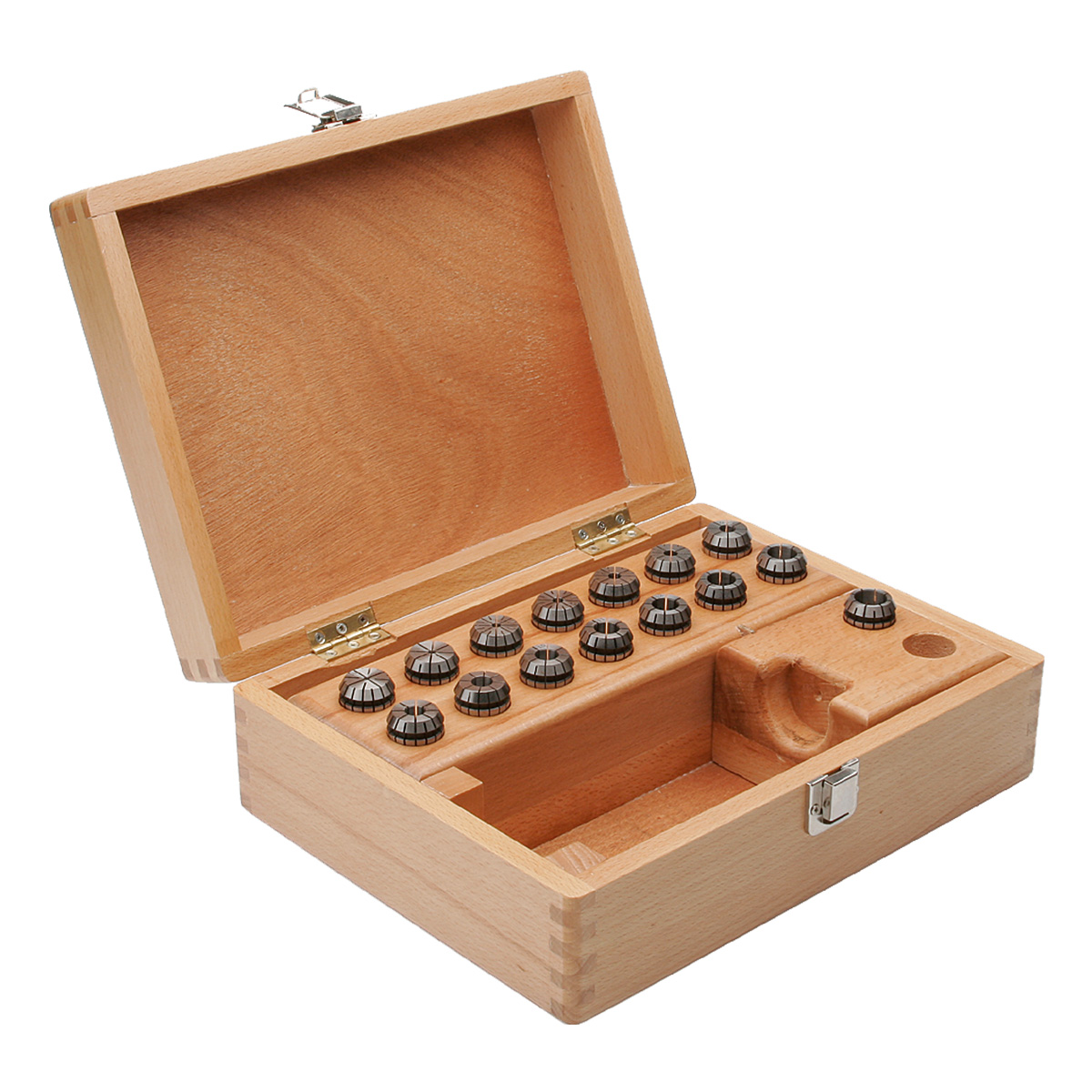

ER 32, 470 ECP, 15-part kit in wooden box
ISO 15488 (ex. DIN 6499)

VAT 0% 852,00 €

Checking availability

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

Application:
For mounting straight-shank tools in collet chucks ISO 15488 (ex. DIN 6499).
Version:
Metallic sealed collets with cooling channels. Applicable up to 100 bar.
System concentricity and repetition accuracy 3 µm (3×D, maximum = 50 mm), in conjunction with „KEMMLER Precision collet chuck ER".
Suitable for:
KEMMLER Precision collet chuck ER or standard collet chuck Spannfutter ISO 15488 (ex. DIN 6499).
Note:
Only nominal size d can be clamped, with cooling channels. In order to achieve an optimum sealing the tool must be clamped on the complete length of the ground drill of the collet. Applicable up to 100 bar.

Consisting of : Wooden Box 701.20.25and collets: Ø 3-4-5-6-7- 8- 9-10-11-12-14-15-16-18-20
