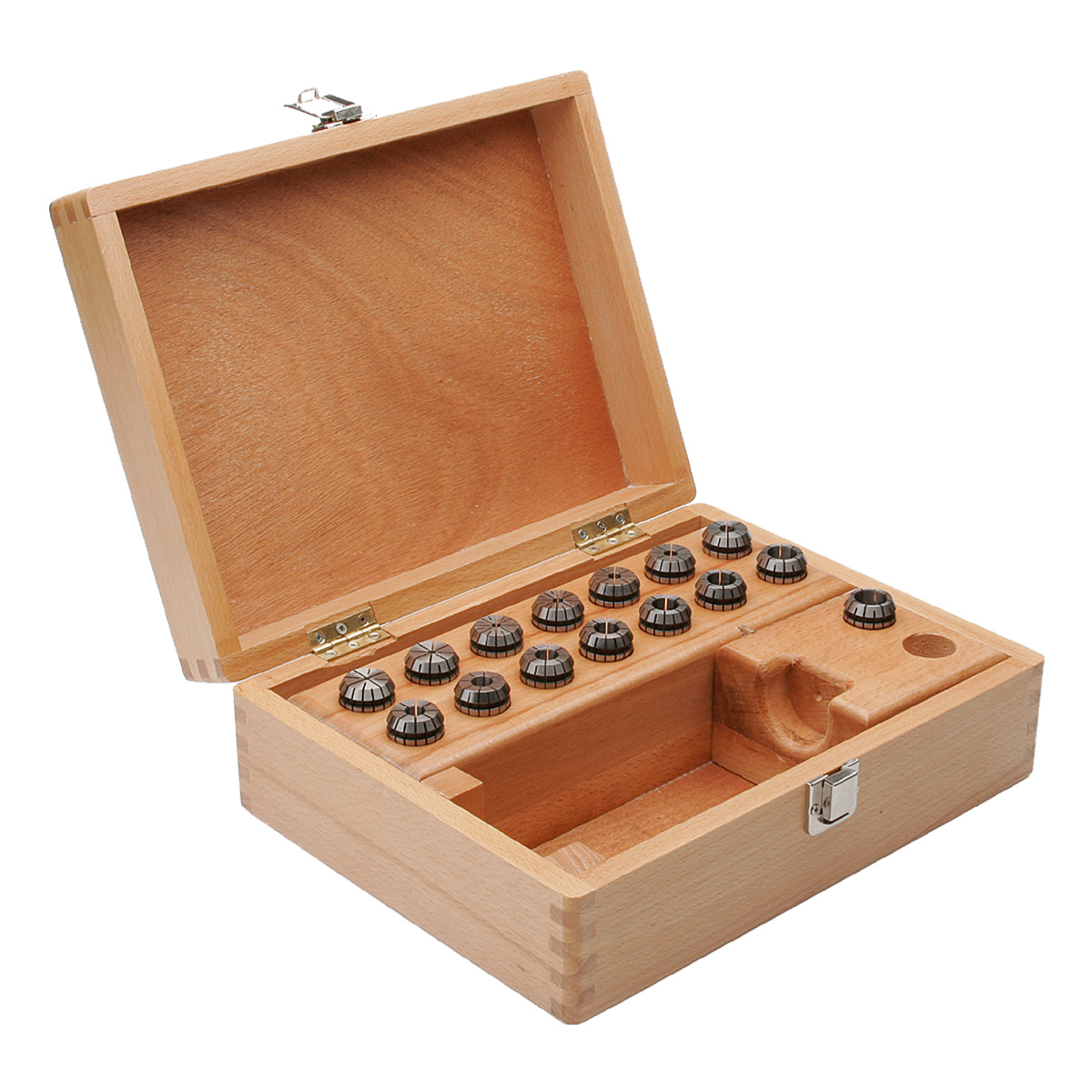

Collet sets 472ECC, ER40, 16 parts, with cooling channels along the boring
701.472ECC.1
EAN-code: 4250001134297
in wooden box DIN 6499 (ISO 15488)
with cooling channels along the boringConsisting of : Wooden Box 701.26.32 and Collets: Ø 4-5-6-7-8-9-10-11-12-14-16-18-20-22-24-26
with cooling channels along the boringConsisting of : Wooden Box 701.26.32 and Collets: Ø 4-5-6-7-8-9-10-11-12-14-16-18-20-22-24-26
VAT 0%
949,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting straight-shank tools in collet chucks DIN 6499.
Note:
Only nominal size d can be clamped, with cooling channels. In order to achieve an optimum sealing the tool must be clamped on the complete length of the ground drill of the collet. (applicable up to 21 bar)
Technical details
Description
Symbol
Value
Type
472E, ER 40
Pyörintätarkkuus
< 15µm mm
Adaptive interface machine direction
ADINTMS
ER collet ISO10897 (DIN6388) - ER40
Adaptive interface workpiece direction
ADINTWS
Lieriö - metrinen
Coolant exit style
CXSC
Varren mukaisilla jäähdytysurilla
Overall height
OAH
70 mm
Overall width
OAW
235 mm
Seal
SEAL
Kyllä
