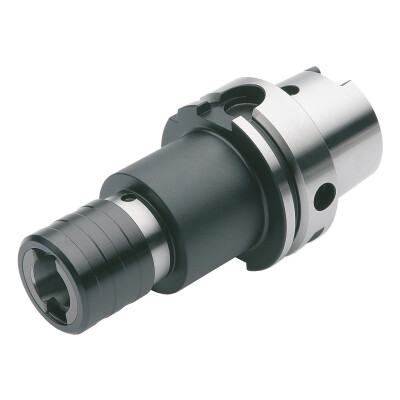

Quick change tapping chuck, ISO 12164 [DIN 69893], HSK-A
A40.16.12
EAN-code: 4250001027803
HSK 40 - M3-M12
ISO 12164 [DIN 69893], HSK-A
ISO 12164 [DIN 69893], HSK-A
VAT 0%
360,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For the chucking of quick change adaptors for taps.
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
with length compensation on compression and expansion
Technical details
Description
Symbol
Value
Adaptive interface machine direction
ADINTMS
ISO 12164 (HSK-A)
Adaptive interface workpiece direction
ADINTWS
Pikavaihto
Body diameter 2
BD2
36 mm
Clamping Ø, nominal, workpc. side
DCONWS
19
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Length compensation compression
LCOMP
7 mm
Protruding length
LPR
95 mm
Capacity
M3 - M14
Nominal size
SZID
1
HSK
HSK-A 40
