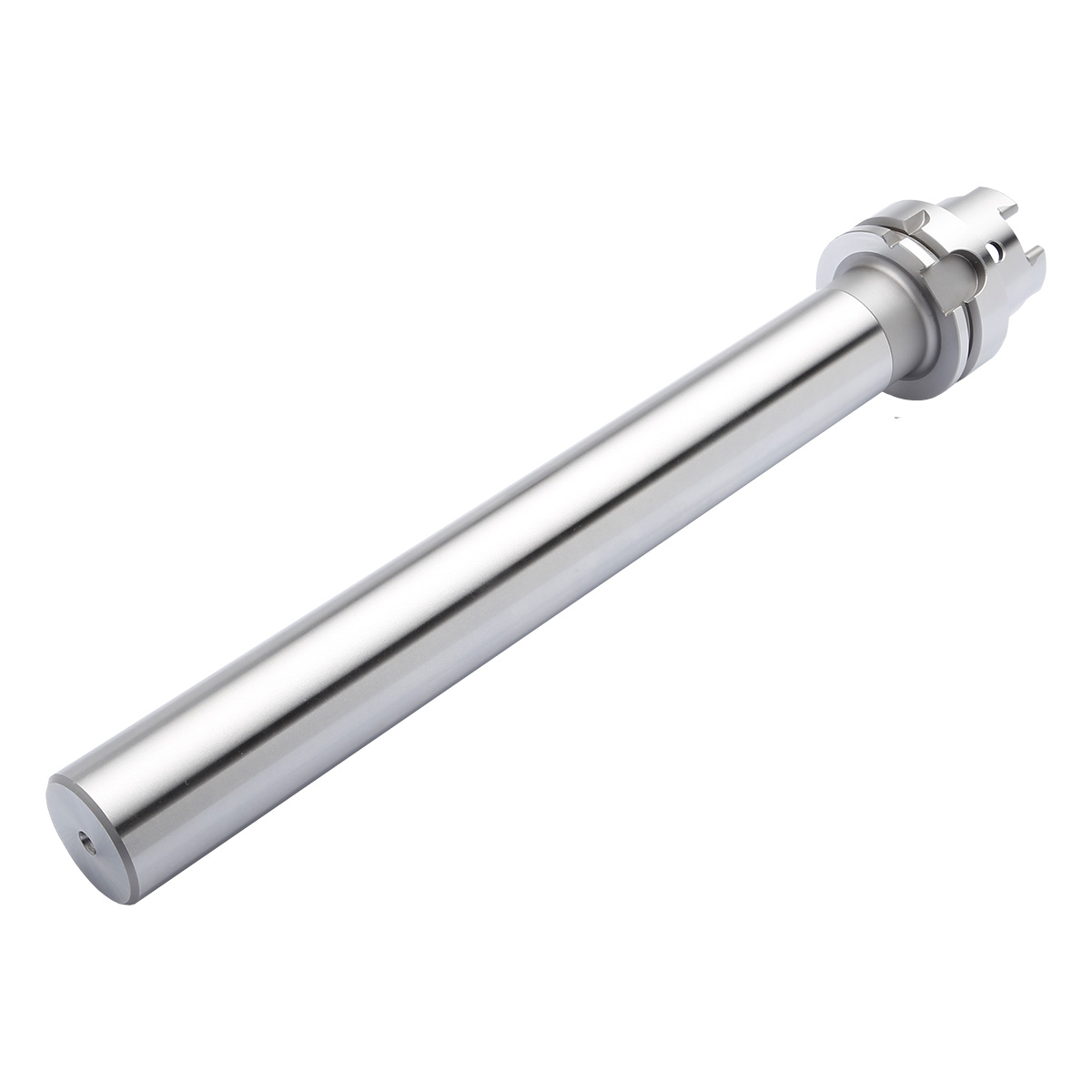

Test arbor , ISO 12164 [DIN 69893], HSK-A
A40.18.25
EAN-code: 4250001022624
HSK 40 - 25 - 200
ISO 12164 [DIN 69893], HSK-A
ISO 12164 [DIN 69893], HSK-A
VAT 0%
414,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For the inspection of machine tools according to ISO recommendation R230 or for testing the tool spindle.
Delivery:
with test certificate
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Technical details
Description
Symbol
Value
Body diameter
BD
25 mm
Adaptive interface machine direction
ADINTMS
ISO 12164 (HSK-A)
Adaptive interface workpiece direction
ADINTWS
Tarkistustuurna
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Protruding length
LPR
200 mm
max. concentricity deviation
< 3µm
HSK
HSK-A 40
Tolerance
Tol.
< 3µm
