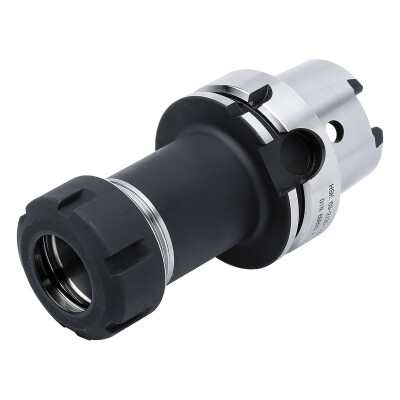

ER-Collet chuck , ISO 12164 [DIN 69893], HSK-A
A50.02.16
EAN-code: 4250001027940
HSK 50 - ER
ISO 12164 [DIN 69893], HSK-A
ISO 12164 [DIN 69893], HSK-A
VAT 0%
120,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting straight-shank tools in collets.
Delivery:
With balanced clamping nut
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Technical details
Description
Symbol
Value
Type
430E, ER 25
Adaptive interface machine direction
ADINTMS
ISO 12164 (HSK-A)
Adaptive interface workpiece direction
ADINTWS
ISO 15488 (DIN 6499) ER
Balance grade
G2,5, 25.000 1/min
Clamping Ø, nominal, workpc. side
DCONWS
2 - 16
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Diameter lock nut
DLN
42 mm
Protruding length
LPR
80 mm
Thread designation inside
THID
M16 x 2,0
max. concentricity deviation
< 3µm
HSK
HSK-A 50
