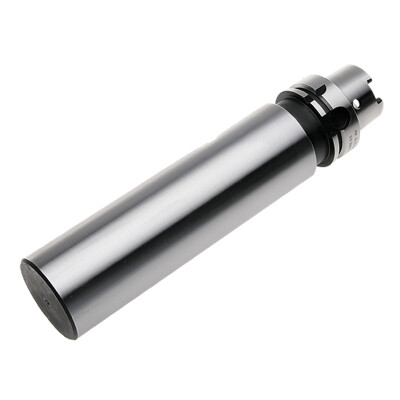

Boring bar blank, ISO 12164 [DIN 69893], HSK-A
A50.17.50
EAN-code: 4250001022501
HSK 50 - 50,5 - 200
ISO 12164 [DIN 69893], HSK-A
ISO 12164 [DIN 69893], HSK-A
VAT 0%
140,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For the manufacturing of special tools.
Note:
Cone and flange hardened and grinded. Soft body for later processing.
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Technical details
Description
Symbol
Value
Body diameter
BD
50,5 mm
Adaptive interface machine direction
ADINTMS
ISO 12164 (HSK-A)
Adaptive interface workpiece direction
ADINTWS
Aihio
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Body length
LB
158 mm
Protruding length
LPR
200 mm
HSK
HSK-A 50
