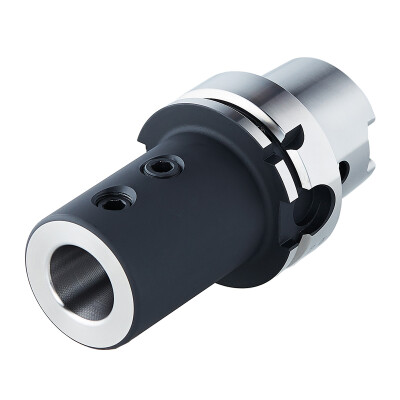

Boring holder for drills with indexable inserts, , ISO 12164 [DIN 69893], HSK-A
A63.51.32
EAN-code: 4250001155087
HSK 63
ISO 12164 [DIN 69893], HSK-A
ISO 12164 [DIN 69893], HSK-A
VAT 0%
136,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting solid drills with cylindrical shank according to DIN 6595.
Note:
Contact surface precision grinded
Delivery:
With clamping screws
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined

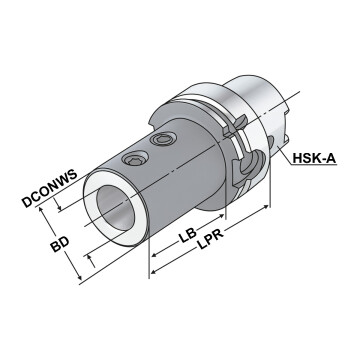

Technical details
Enlarge
- Models
- A63 51 32 D 3D Zeichnung
Description
Symbol
Value
Body diameter
BD
52 mm
Adaptive interface machine direction
ADINTMS
ISO 12164 (HSK-A)
Adaptive interface workpiece direction
ADINTWS
DIN 6595 Form E1
Balance grade
G6,3, 15.000 1/min
Clamping Ø, nominal, workpc. side
DCONWS
32
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Body length
LB
63 mm
Protruding length
LPR
90 mm
max. concentricity deviation
< 4µm
HSK
HSK-A 63
