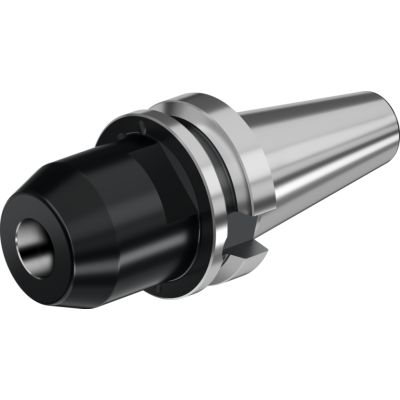

MAS-BT JIS B 6339 hydraulic expansion chuck

AB016-J30-P12-069

EAN-code: 4063467422781

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Connection diameter

d₁₄

32 mm

Body diameter

d₁₂

42 mm

Pull stud, thread size

d₁₃

M12

Connection diameter

d₁₁

12 mm

Usable length

l₁₆

31 mm

Functional length

l₄

69 mm

Clamping diameter depth

l₁₇

46 mm

Min. clamping diameter depth

l_{17 min}

36 mm

Tool designation

Designation

AB016-J30-P12-069

Weight

0,85 kg

Connection size code

d₁

BT30
