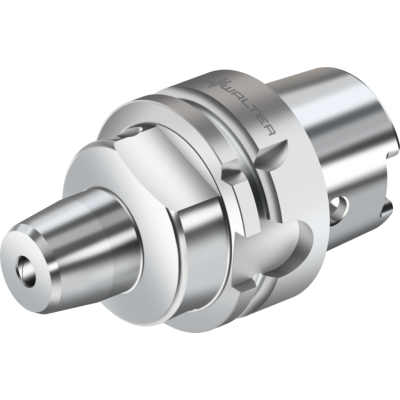

DIN 69893-1 A hydraulic expansion chuck

AB017-H100-P06-075 NEW 2024

EAN-code: 4063466726095

VAT 0% 771,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Connection diameter

d₁₄

22 mm

Body diameter

d₁₂

26 mm

Connection diameter

d₁

100

Connection diameter

d₁₁

6 mm

Usable length

l₁₆

46 mm

Functional length

l₄

75 mm

Clamping diameter depth

l₁₇

37 mm

Min. clamping diameter depth

l_{17 min}

27 mm

Tool designation

Designation

AB017-H100-P06-075

Weight

2,5 kg
