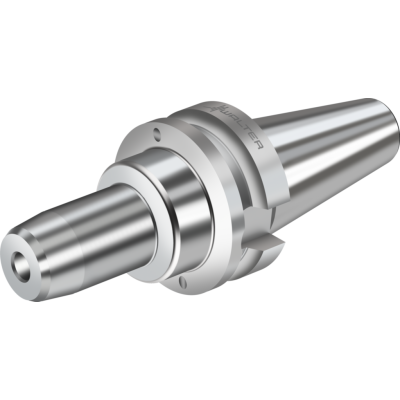

MAS-BT JIS B 6339 hydraulic expansion chuck

AB017-J40-P16-090 NEW 2024

EAN-code: 4063466726439

VAT 0% 294,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Connection diameter

d₁₄

34 mm

Body diameter

d₁₂

38 mm

Pull stud, thread size

d₁₃

M16

Connection diameter

d₁

Connection diameter

d₁₁

16 mm

Usable length

l₁₆

63 mm

Functional length

l₄

90 mm

Clamping diameter depth

l₁₇

49 mm

Min. clamping diameter depth

l_{17 min}

39 mm

Tool designation

Designation

AB017-J40-P16-090

Weight

1,5 kg
