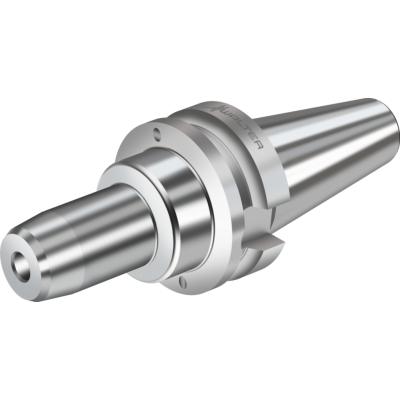

MAS-BT JIS B 6339 hydraulic expansion chuck

AB017-J40-P32-100 NEW 2024

EAN-code: 4063466726453
VAT 0% 294,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-A-AB017-J-D-01
Enlarge
Description Symbol Value
Connection diameter
d14
59 mm
Body diameter
d12
62 mm
Pull stud, thread size
d13
M16
Connection diameter
d1
40
Connection diameter
d11
32 mm
Usable length
l16
73 mm
Functional length
l4
100 mm
Clamping diameter depth
l17
61 mm
Min. clamping diameter depth
l17 min
51 mm
Tool designation
Designation
AB017-J40-P32-100
Weight
2,55 kg
