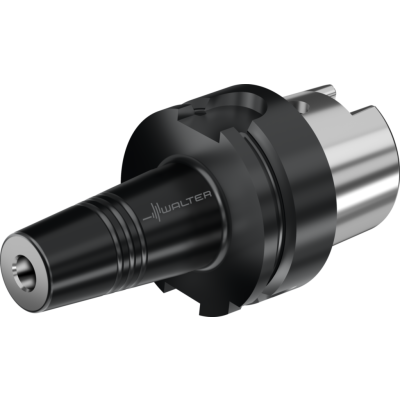

DIN 69893-1 A slim hydraulic expansion chuck

AB019-H100-P08-085 NEW 2021

EAN-code: 0694434851
For tools with shank in accordance with DIN 1835 Form A
VAT 0% 996,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Mounting diameter
d14
21 mm
Body diameter
d12
27 mm
Connection diameter
d11
8 mm
Functional length
l16
56 mm
Functional length
l4
85 mm
Clamping diameter depth
l17
36,7 mm
Min. clamping diameter depth
l17 min
26,7 mm
Tool designation
Designation
AB019-H100-P08-085
Weight
2,2 kg
Connection size code
d1
HSK-A100
