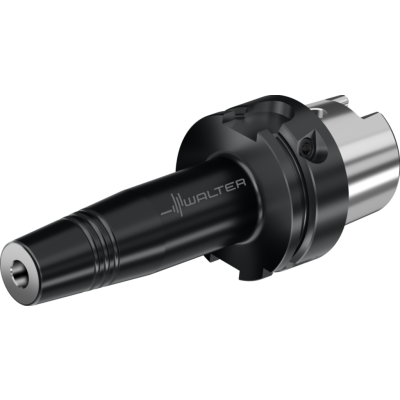

DIN 69893-1 A slim hydraulic expansion chuck
AB019-H100-P10-120 NEW 2021
EAN-code: 0694441851
For tools with shank in accordance with DIN 1835 Form A
VAT 0%
1063,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

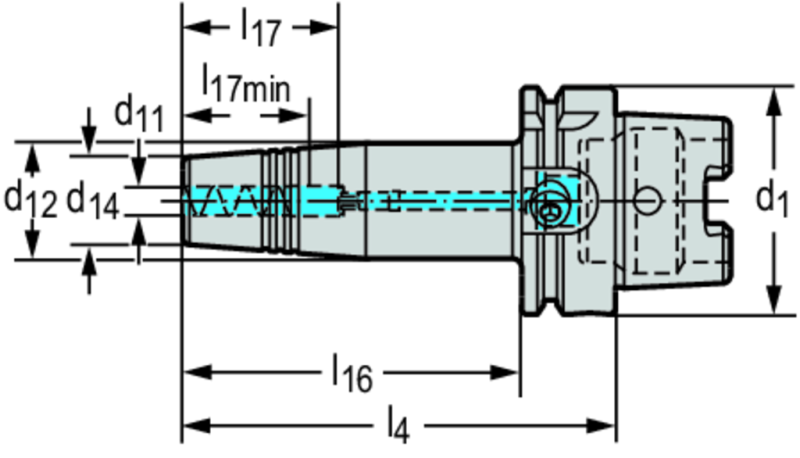

Technical details
Description
Symbol
Value
Mounting diameter
d14
24 mm
Body diameter
d12
32 mm
Functional length
l16
91 mm
Functional length
l4
120 mm
Clamping diameter depth
l17
43,3 mm
Min. clamping diameter depth
l17min
33,2 mm
Tool designation
Designation
AB019-H100-P10-120
Weight
WT
2,4 kg
Connection size code
d1
HSK-A100
Connection size code
d11
1
