Products Adaptors Chucks and holders, Walter tools Capto ISO26623-1 Shell end milling cutter arbor AK155.8 0442022968

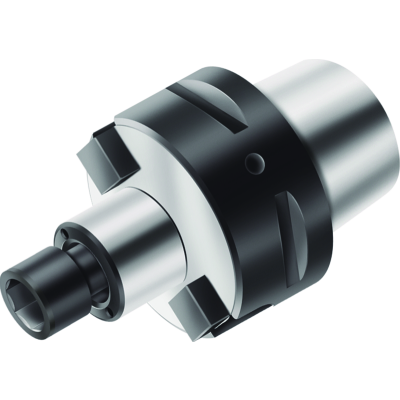

Shell mill adaptor

AK155.8.C6.025.27

EAN-code: 0442022968
ISO 26623
VAT 0% 328,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-A-AK155-CAPTO-D-01
Enlarge
Description Symbol Value
Body diameter
d12
60 mm
Functional length
l4
46 mm
Shank length
l19
21 mm
Tool designation
Designation
AK155.8.C6.025.27
Weight
WT
0,98 kg
Connection size code
d1
C6
Connection size code
d11
27
