Products Adaptors Chucks and holders, Walter tools Walter ScrewFit ER collet chucks AK300.T 0571352853

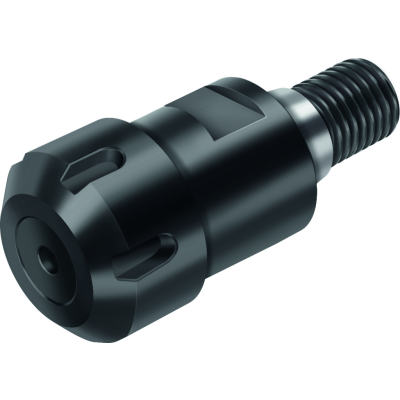

ER collet chucks

AK300.T22.030.06

EAN-code: 0571352853
For ER collets in accordance with DIN 6499/ISO15488
VAT 0% 284,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

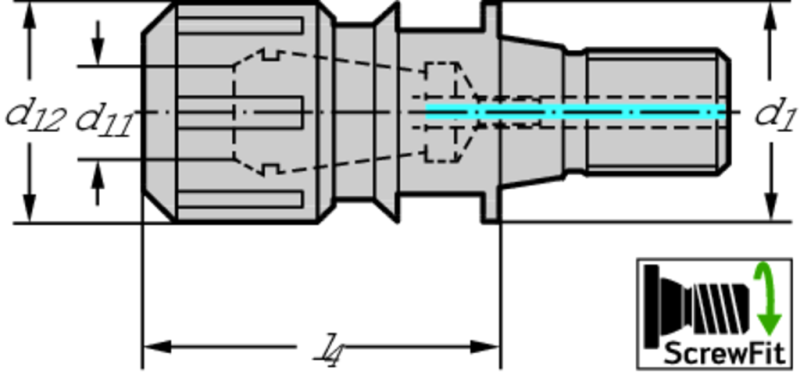

Technical details
W A AK300 T D 01
Enlarge
Description Symbol Value
Body diameter
d12
19 mm
Collets
ER11
Functional length
l4
30 mm
Tool designation
Designation
AK300.T22.030.06
Weight
WT
0,08 kg
Connection size code
d1
T22
Connection size code
d11
1-6
Compatible products
Adaptors
Assembly parts
W-A-AK540-BT-P-01
AK540.BT-SK50
MAS-BT JIS B 6339 adaptor
Show variations
W-A-AK540-BT-P-01
AK540.BT-SK40
MAS-BT JIS B 6339 adaptor
Show variations
W-A-AK512-Z-P-01
AK512.Z-A
DIN 1835 A adaptor
Show variations
W-A-AK510-Z-P-01
AK510.Z-B
DIN 1835 A adaptor
Show variations
W-A-AK510-Z-P-01
AK510.Z-A
DIN 1835 A adaptor
Show variations
W-A-AK510-Z-P-01
A510.Z-A
DIN 1835 A adaptor
Show variations
W A AK521 T P 01
AK522.TC
Reduction adaptor
Show variations
W A AK580 CAPTO P 01
AK580.C
Walter CaptoTM adaptor
Show variations
W-A-AK541-SK-P-01
AK541.S-SK50
DIN 69871 AD/B adaptor
Show variations
W A AK541 SK P 01
AK541.S-SK40
DIN 69871 AD/B adaptor
Show variations
W A AK541 BT P 01
AK541.BT-SK40
MAS-BT JIS B 6339 adaptor
Show variations
W-A-AK540-SK-P-01
AK540.S-SK50
DIN 69871 AD/B adaptor
Show variations
W A AK540 SK P 01
AK540.S-SK40
DIN 69871 AD/B adaptor
Show variations
W A AK531 HSK P 01
AK531.H
DIN 69893-1 A adaptor
Show variations
W-A-AK530-HSK-P-01
AK530.H63
DIN 69893-1 A adaptor
Show variations
W-A-AK530-HSK-P-01
AK530.H100
DIN 69893-1 A adaptor
Show variations
W A AK521 T P 01
AK521.T
Reduction adaptor
Show variations
imageComingSoon big en US
Z_NUT
Nut
Show variations
