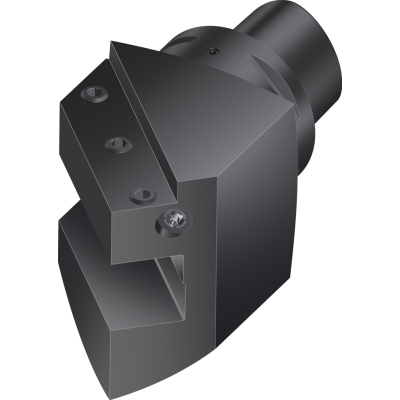

Axial adaptor

C8-ASHR45-50135-32

EAN-code: 0569938968
For shank tools ISO 26623
VAT 0% 669,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Mounting diameter
d1
80 mm
Mounting diameter
d14
140 mm
Center height
h1
32 mm
Functional length
l4
135 mm
Shank length
l5
135 mm
Tool designation
Designation
C8-ASHR45-50135-32
Functional width
f
17 mm
Weight
6,72 kg
Compatible products
Adaptors
Assembly parts
W-A-2090-CAPTO-P-01
R/LC2090
Clamping units
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 558 50050 P 01
390B.558/555-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-EZ-Z-NOZZEL-WH-P-01
Z_NOZZEL
Nozzle
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
