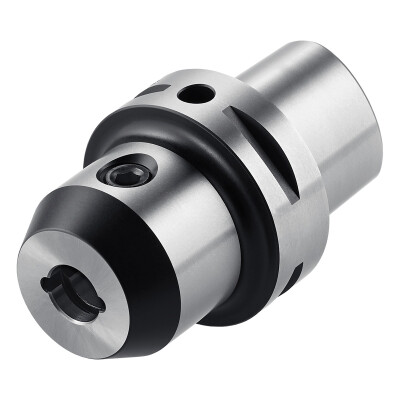

End mill holder Weldon with cooling channels, ISO 26623, Polygonal shank
C6.04.12.K
EAN-code: 4250000000173
PSK 63
ISO 26623, Polygonal shank
ISO 26623, Polygonal shank
VAT 0%
266,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting straight-shank tools with lateral flat according to DIN 1835 form B (Weldon).
With coolant channels for optimal coolant at the cutting edge.
Delivery:
With clamping screw
Note:
From DCONWS = 25 on two clamping screws
DCONWS = 6 to 18 with two coolant channels
DCONWS = 20 to 40 with four coolant channels
For tools with through coolant an O-ring must be used.
Technical details
Description
Symbol
Value
Body diameter
BD
42 mm
Body material code
BMC
false
Type
false
Adaptive interface machine direction
ADINTMS
Capto (PSK)
Adaptive interface workpiece direction
ADINTWS
DIN 6359 (Weldon)
Balance grade
G2,5, 25.000 1/min
Adjustment range, axial
ADJRGA
false
Body diameter 1
BD1
false mm
Body diameter 2
BD2
false mm
Body half taper angle
BHTA
false
Body taper end diameter
BTED
false
Coolant exit style
CXSC
false
Clamping Ø, nominal, workpc. side
DCONWS
12
Data chip provision
DCP
false
Data chip provision size
DCPS
false
Diameter lock nut
DLN
false mm
Drive size
DRVS
false
Body length
LB
false mm
Body length 2
LB2
false mm
Length body diameter 1
LBD1
false mm
Length compensation compression
LCOMP
false mm
Functional length
LF
false mm
Protruding length
LPR
60 mm
Clamping length minimum machine side
LSCN
false mm
Clamping length maximum machine side
LSCX
false mm
Concentricity
< 3µm
Capacity
false
Nominal size
SZID
false
Tolerance class connection diameter
TDCON
H4
Thread designation inside
THID
false
Connection thread nominal size workpiece side
THSZWS
false
Torque maximum
TQX
false Nm
max. concentricity deviation
false
Overall height
OAH
false mm
Overall width
OAW
false mm
Thread designation outside
THOD
false
Tolerance
false
Height
h1
false mm
Capto (PSK)
C6, PSK 63
Measure
x
false mm
Measure
y
false mm
Shank height
h/b
false mm
