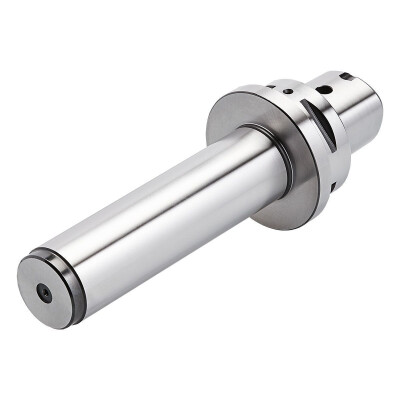

Test arbor , ISO 26623, Polygonal shank
C6.18.40.352
EAN-code: 4250000001392
PSK 63
ISO 26623, Polygonal shank
ISO 26623, Polygonal shank
VAT 0%
1395,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For the inspection of machine tools according to ISO recommendation R230 or for testing the tool spindle.
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Technical details
Description
Symbol
Value
Body diameter
BD
40 mm
Adaptive interface machine direction
ADINTMS
Capto (PSK)
Adaptive interface workpiece direction
ADINTWS
Tarkistustuurna
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Protruding length
LPR
352 mm
Concentricity
< 5µm
max. concentricity deviation
5.0000000000000001E-3
Tolerance
Tol.
5.0000000000000001E-3
Capto (PSK)
C6, PSK 63
