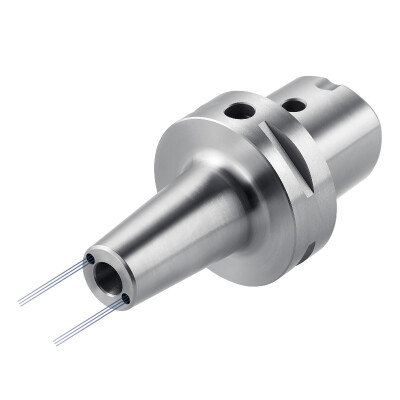

Shrink chuck 4,5°, ISO 26623, Polygonal shank

C6.70.16.K

EAN-code: 4250000001446
PSK 63
ISO 26623, Polygonal shank
VAT 0% 378,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Adaptive interface machine direction
ADINTMS
Capto (PSK)
Adaptive interface workpiece direction
ADINTWS
Kutisteliitos 4,5°
Balance grade
G2,5, 25.000 1/min
Adjustment range, axial
ADJRGA
10
Body diameter 2
BD2
34 mm
Body taper end diameter
BTED
27
Coolant exit style
CXSC
Jäähdytyskanavilla
Clamping Ø, nominal, workpc. side
DCONWS
16
Protruding length
LPR
85 mm
Clamping length minimum machine side
LSCN
39 mm
Clamping length maximum machine side
LSCX
49 mm
Concentricity
< 3µm
Tolerance class connection diameter
TDCON
h6
Thread designation inside
THID
M10 x 1
Capto (PSK)
C6, PSK 63
