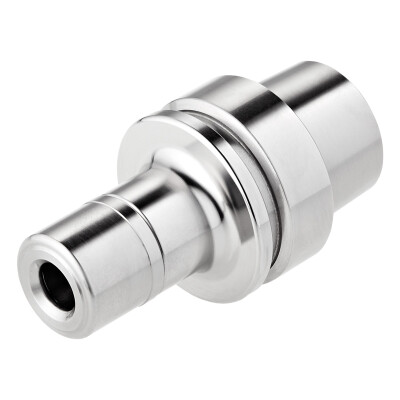

KPS-Collet chuck, DIN 69893-5, HSK-E
E40.03.10
EAN-code: 4250001164744
HSK 40 - KPS
DIN 69893-5, HSK-E
DIN 69893-5, HSK-E
VAT 0%
120,00 €
Checking availability
Out of stock, ask for shipping time
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting straight-shank tools in collets. To use for high speed cutting and high precision milling.
Delivery:
With balanced clamping nut
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Technical details
Description
Symbol
Value
Type
490E, KPS 10
Adaptive interface machine direction
ADINTMS
DIN 69893-5 (HSK-E)
Adaptive interface workpiece direction
ADINTWS
KPS
Balance grade
G2,5, 30.000 1/min
Clamping Ø, nominal, workpc. side
DCONWS
1 - 10
Diameter lock nut
DLN
27,5 mm
Protruding length
LPR
75 mm
Concentricity
< 3µm
Thread designation inside
THID
M12 x 1,75
HSK
HSK-E 40
