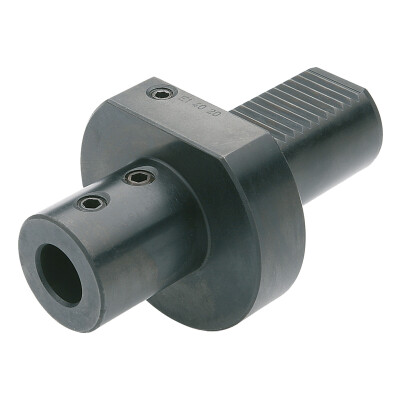

Boring holders - form E1, DIN ISO 10889 [DIN 69880] - VDI
209.51.20
EAN-code: 4250001001537
E1 - 20
DIN ISO 10889 [DIN 69880] - VDI
DIN ISO 10889 [DIN 69880] - VDI
VAT 0%
75,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting solid drills with cylindrical shank according to DIN 6595.
Delivery:
With clamping screws
for drills with indexable inserts
Technical details
Description
Symbol
Value
Body material code
BMC
Teräs
Koko
Size
E1 - 20 × 20
Type
E1
Hand
N
Adaptive interface machine direction
ADINTMS
VDI 20
Adaptive interface workpiece direction
ADINTWS
Poraistukka
Body diameter 2
BD2
40 mm
Clamping Ø, nominal, workpc. side
DCONWS
20
Protruding length
LPR
67 mm
Flange diameter
DF
50
Flange thickness
FLGT
18
Body height 1
HTB1
22
Body height 2
HTB2
22
