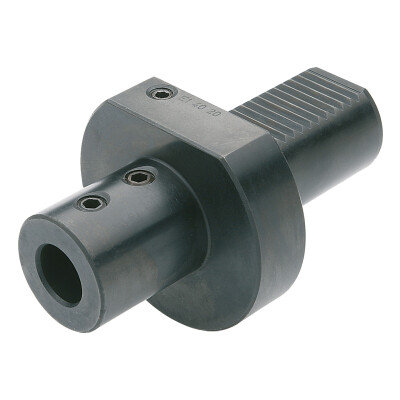

Boring holders - form E1, DIN ISO 10889 [DIN 69880] - VDI
409.51.40
EAN-code: 4250001008529
E1 - 40
DIN ISO 10889 [DIN 69880] - VDI
DIN ISO 10889 [DIN 69880] - VDI
VAT 0%
88,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting solid drills with cylindrical shank according to DIN 6595.
for drills with indexable inserts
Technical details
Description
Symbol
Value
Body material code
BMC
Teräs
Koko
Size
E1 - 40 × 40
Type
E1
Hand
N
Adaptive interface machine direction
ADINTMS
VDI 40
Adaptive interface workpiece direction
ADINTWS
Poraistukka
Body diameter 2
BD2
65 mm
Clamping Ø, nominal, workpc. side
DCONWS
40
Protruding length
LPR
90 mm
Flange diameter
DF
83
Flange thickness
FLGT
22
Body height 1
HTB1
32.5
Body height 2
HTB2
41.5
