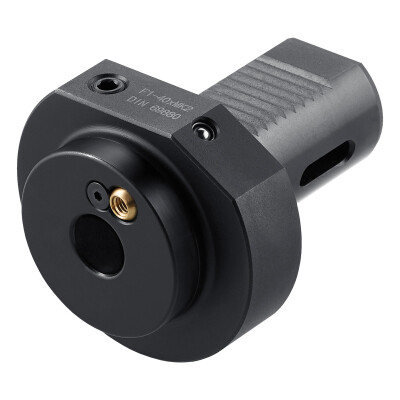

Morse taper adaptor - form F1, DIN ISO 10889 [DIN 69880] - VDI

309.07.03

EAN-code: 4250001004170

F1 - MK
DIN ISO 10889 [DIN 69880] - VDI

VAT 0% 90,00 €

Checking availability

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Application:
For mounting tools with Morse taper shank and tang according to DIN 228-1 form B.

Note:
With adjustable spray nozzles

Delivery:
for MT, tanged, DIN 6383

Description Symbol Value

Body material code

BMC

Teräs

Koko

Size

F1 - 30 × MK 3

Type

Hand

Adaptive interface machine direction

ADINTMS

VDI 30

Adaptive interface workpiece direction

ADINTWS

DIN 6390

Body diameter 2

BD2

58 mm

Connection text workpiece side

CTWS

Protruding length

LPR

75 mm

Flange diameter

Flange thickness

FLGT

Body height 1

HTB1

Body height 2

HTB2
