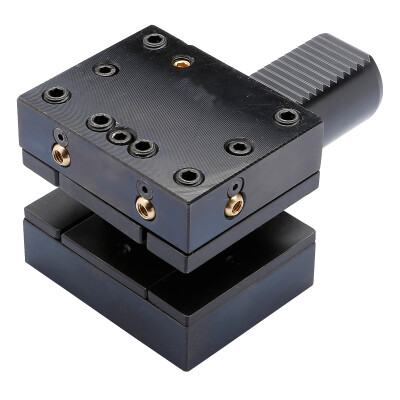

Rectangular toolholders with multiple seats - form D1, DIN ISO 10889 [DIN 69880] - VDI
509.89.20
EAN-code: 4250001096236
DIN ISO 10889 [DIN 69880] - VDI
VAT 0%
240,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
Mainly for external machining. For face machining.
Delivery:
With adjustable spray nozzle and shim
Technical details
Description
Symbol
Value
Body material code
BMC
Teräs
Koko
Size
D1 - 50 × 32 x 85
Type
D1
Hand
N
Adaptive interface machine direction
ADINTMS
VDI 50
Adaptive interface workpiece direction
ADINTWS
Monivarsipidin
Protruding length
LPR
85 mm
Overall width
OAW
105 mm
Functional height
HF
32
Body height
HTB
35
Radial body height
RADH
60
Radial body width
RADW
55
