A1254TFT-5

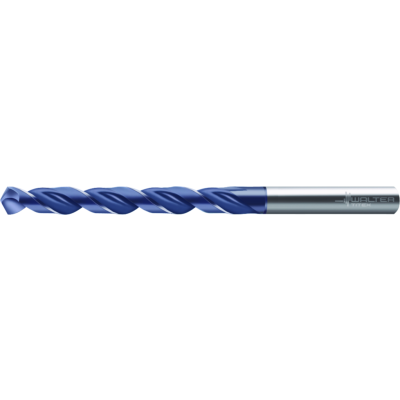

T-DR-A1254-Z-TFT-P-01 image

HSS-E deep-hole drills

A1254TFT-5

EAN-code: 4031132234328

D-drilling-blind-hole-solid-Icon

D-drilling-stack-hole-Icon

D-drilling-thru-hole-all-Icon

D-K-extern-Icon

D-Spitzenw-118-Icon

P

M

K

N

S

H

O

VAT 0% 31,90 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Technical details

T-DR-A1149-Z-D-01

Description Symbol Value

Cutting edge diameter

D_c

5 mm

Shank diameter

d₁

5 mm

Flute length

l₂

52 mm

Cutting edge length

L_c

44 mm

Overall length

l₁

86 mm

Tool designation

Designation

A1254TFT-5

Compatible products

Adaptors

Products

AB016-J

MAS-BT JIS B 6339 hydraulic expansion chuck

AB016-S

DIN 69871 AD/B hydraulic expansion chuck

AB016-C

Walter Capto^TM hydraulic expansion chuck ISO 26623-1

AB016-H

DIN 69893-1 A hydraulic expansion chuck

AB025-J

MAS-BT JIS B 6339 shrink-fit adaptor

AB025-H

DIN 69893-1 A shrink-fit adaptor

AB017-J

MAS-BT JIS B 6339 hydraulic expansion chuck

AB017-S

DIN 69871 AD/B hydraulic expansion chuck

AB025-S

DIN 69871 AD/B shrink-fit adaptor

AB017-H

DIN 69893-1 A hydraulic expansion chuck

W-A-AK300T-P-01

AK300.T-IK

ER collet chucks

W-A-FS2226-P-01

REDUZIERHUELSE-IK

Adaptor sleeves for internal cooling

W-A-C330-P-01

C330-ER40

DIN 6499 ER collets

W A C330 P 01

C330-ER32

DIN 6499 ER collets

W-A-C330-P-01

C330-ER25

DIN 6499 ER collets

W-A-C330-P-01

C330-ER20

DIN 6499 ER collets

W-A-C330-P-01

C330-ER16

DIN 6499 ER collets

W-A-C330-P-01

C330-ER11

DIN 6499 ER collets

W A 391 14 CAPTO P 01

391.14-CAPTO

ER collet chucks

W A AK300T P 01

AK300.T

ER collet chucks

A305.0

DIN 1835 B ER collet chuck

Z-SEALING-WH-P-01

Z_SEALING

Seal
