Products Cutting tools Holemaking Solid drilling HSS drilling and reaming tools ~8xD – DIN338 / DIN345 A1254TFT VA Inox A1254TFT-10

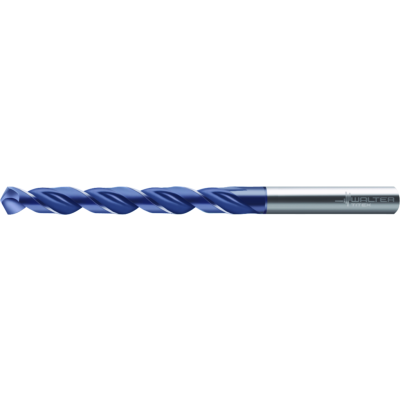

HSS-E deep-hole drills

A1254TFT-10

EAN-code: 4031132234564
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D--8xDc-Icon D-DIN338-Icon D-K-extern-Icon D-Spitzenw-118-Icon
P
M
K
N
S
H
O
VAT 0% 61,50 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T-DR-A1149-Z-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10 mm
Shank diameter
d1
10 mm
Flute length
l2
87 mm
Cutting edge length
Lc
71 mm
Overall length
l1
133 mm
Tool designation
Designation
A1254TFT-10
Compatible products
Adaptors
Products
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-AK300T-P-01
AK300.T-IK
ER collet chucks
Show variations
SL-K-P-01
REDUZIERHUELSE
Adaptor sleeves for peripheral cooling
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
W-A-C330-P-01
C330-ER40
DIN 6499 ER collets
Show variations
W A C330 P 01
C330-ER32
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER25
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER20
DIN 6499 ER collets
Show variations
W-A-C330-P-01
C330-ER16
DIN 6499 ER collets
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER collet chucks
Show variations
W A AK300T P 01
AK300.T
ER collet chucks
Show variations
W A A305 P 01
A305.0
DIN 1835 B ER collet chuck
Show variations
Z-SEALING-WH-P-01
Z_SEALING
Seal
Show variations
