4031132042435

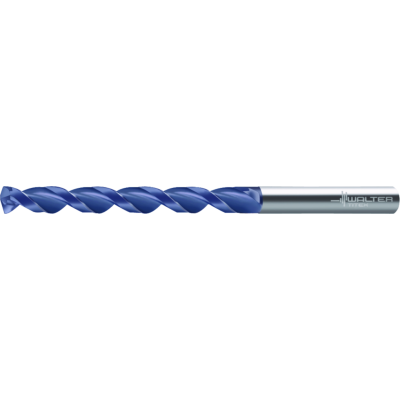

T DR A1276 Z TFL P 01 image

Solid carbide twist drills

A1276TFL-3

EAN-code: 4031132042435

D-drilling-blind-hole-solid-Icon

D-drilling-stack-hole-Icon

D-drilling-thru-hole-all-Icon

D-K-extern-Icon

D-Spitzenw-140-Icon

P

M

K

N

S

H

O

VAT 0% 67,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Appendices

handbook drilling 2014 en (pdf)

Technical details

T Dr A1149 Z D 01

Description Symbol Value

Cutting edge diameter

D_c

3 mm

Shank diameter

d₁

3 mm

Flute length

l₂

33 mm

Cutting edge length

L_c

28 mm

Overall length

l₁

61 mm

Tool designation

Designation

A1276TFL-3

Compatible products

Adaptors

W-A-SL-K-P-01

REDUZIERHUELSE

Adaptor sleeves for peripheral cooling

W-A-FS2226-P-01

REDUZIERHUELSE-IK

Adaptor sleeves for internal cooling

AB019-H

DIN 69893-1 A slim hydraulic expansion chuck

W-A-C330-P-01

C330-ER40

DIN 6499 ER collets

W A C330 P 01

C330-ER32

DIN 6499 ER collets

W-A-C330-P-01

C330-ER25

DIN 6499 ER collets

W-A-C330-P-01

C330-ER20

DIN 6499 ER collets

W-A-C330-P-01

C330-ER16

DIN 6499 ER collets

W-A-C330-P-01

C330-ER11

DIN 6499 ER collets

W A 391 14 CAPTO P 01

391.14-CAPTO

ER collet chucks

W A AK300T P 01

AK300.T

ER collet chucks

W A AK300 SK P 01

AK300.S

DIN 69871 A ER collet chuck

W A AK300 BT P 01

AK300.BT

MAS-BT JIS B 6339 ER collet chuck

W A AK300M HSK P 01

AK300.7

DIN 69893-1 A ER collet chuck

W A AK182 SK P 01

AK182-SK

DIN 69871 hydraulic expansion chuck

W A AK182 HSK P 01

AK182-HSK

DIN 69893-1 A hydraulic expansion chuck

W A AK182 CAPTO P 01

AK182-C

Walter Capto^TM hydraulic expansion chuck ISO 26623-1

W A AK182 BT P 01

AK182-BT

MAS-BT JIS B 6339 hydraulic expansion chuck

A305.0

DIN 1835 B ER collet chuck
