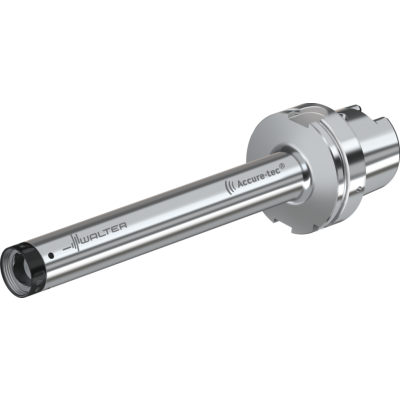

HSK-T adaptor – vibration damped

A3000-H63T-Q25-180 NEW 2020

EAN-code: 0632475963
For QuadFit exchangeable heads With preset vibration damping
VAT 0% 2035,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product

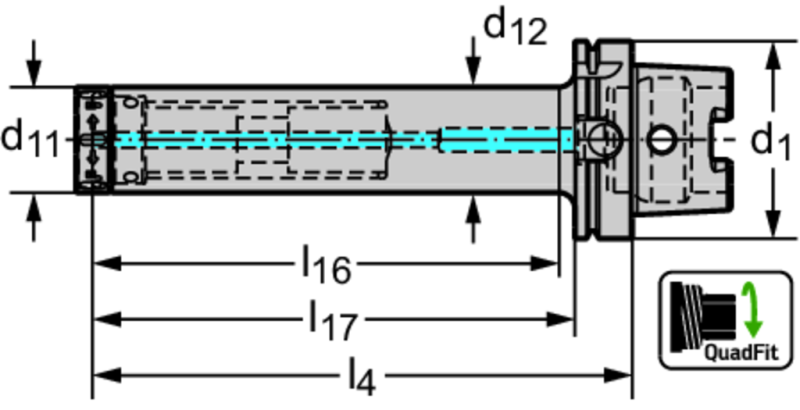

Technical details
Description Symbol Value
Mounting diameter
d11
Q25
Connection diameter
d1
63 mm
Body diameter
d12
25 mm
Clamping diameter depth
l17
154 mm
Useable length
l16
151 mm
maximum overhang
l4
18 mm
Tool designation
Designation
A3000-H63T-Q25-180
Weight
WT
1,3 kg
Compatible products
Assembly parts
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
