Products Cutting tools Holemaking Solid drilling Solid carbide drills Without internal cooling 5xDc Solid carbide countersinkers A3367 4031132233147

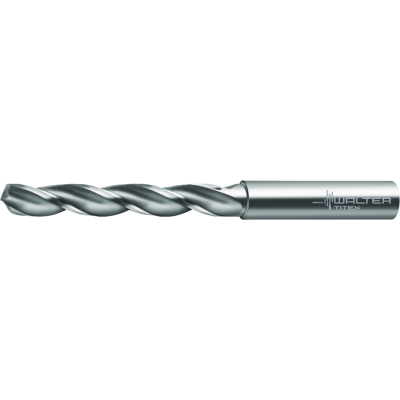

Solid carbide twist drill 3 flutes

A3367-11

EAN-code: 4031132233147
D-drilling-blind-hole-solid-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-DIN6537-L-Icon D-K-extern-Icon D-Spitzenw-130-Icon
SX ground tip
P
M
K
N
S
H
O
VAT 0% 167,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T DR A3367 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
11 mm
Shank diameter
d1
12 mm
Flute length
l2
71 mm
Shank length
l5
45 mm
Cutting edge length
Lc
56 mm
Overall length
l1
118 mm
Tool designation
Designation
A3367-11
Compatible products
Adaptors
Products
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
W DI D4580 VIOLETT P 01
D4580-METRIC
Chamfering tool
Show variations
P
M
K
N
S
H
O
