Products Cutting tools Holemaking Solid drilling Solid carbide drills With internal cooling 30xDc A6994TFP X∙treme DH30 4031132276441

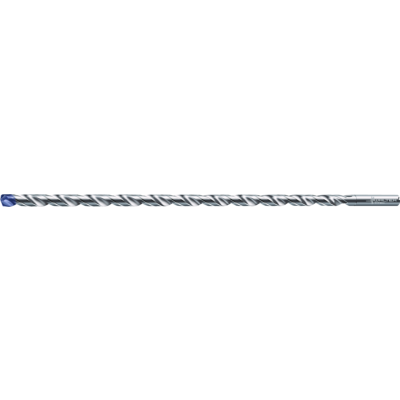

Solid carbide drills with coolant-through

A6994TFP-3

EAN-code: 4031132276441
D-drilling-blind-hole-solid-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-30xDc-Icon D-IK-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 431,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
T DR A6X85 Z D 01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
3 mm
Shank diameter
d1
6 mm
Flute length
l2
97 mm
Shank length
l5
36 mm
Cutting edge length
Lc
92 mm
Overall length
l1
14 mm
Tool designation
Designation
A6994TFP-3
Compatible products
Adaptors
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
