Products Cutting tools Holemaking Boring and precision boring Boring Boring Medium Dc=20-41mm Boring Medium Capto Dc=20-33mm 0708224856

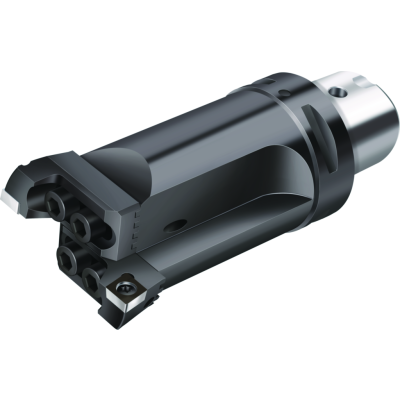

Double-edged boring tool

B3221.C3.020-024.Z2.CC06

EAN-code: 0708224856
D-countersink-rough-Icon
D-Dc20-41-Icon D-M-Z2-Icon Kappa-90-Icon
P
M
K
N
S
H
O
VAT 0% 886,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details

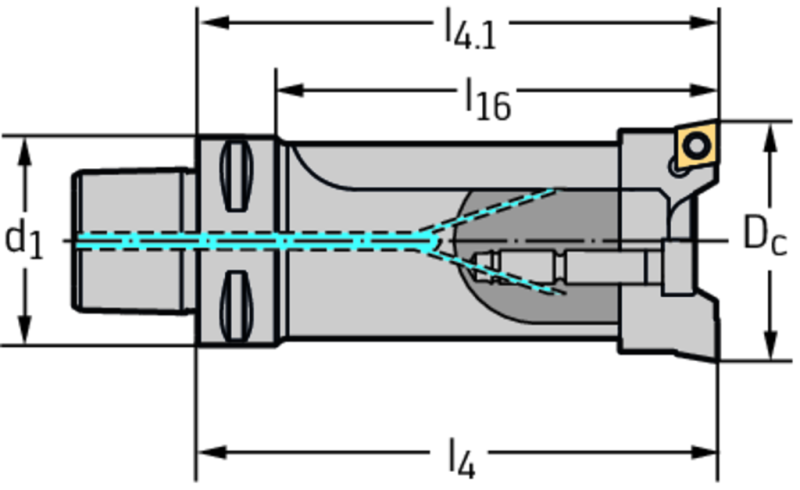

W DI B3220 C3 CC D 02
Enlarge
Description Symbol Value
Connection size code
d1
C3
Cutting edge diameter
Dc
20 mm
Functional length
l4
8 mm
Tool designation
Designation
B3221.C3.020-024.Z2.CC06
Possible indexable inserts
Type
CC .. 0602 ..
Weight
WT
0,2 kg
Compatible products
Products
Adaptors
Products
Accessories
CCMT MP6 TTG2 P 01
CCMT-MP6
Positive rhombic 80°
Show variations
W T CCMW RK6 SILVER P 01
CCMW-RK6
Positive rhombic 80°
Show variations
CCMT-RP4-TTG2-P-01
CCMT-RP4
Positive rhombic 80°
Show variations
W T CCMT RM4 SILVER P 01
CCMT-RM4
Positive rhombic 80°
Show variations
W T CCMT RK4 SILVER P 01
CCMT-RK4
Positive rhombic 80°
Show variations
CCMT-MP4-TTG2-P-01
CCMT-MP4
Positive rhombic 80°
Show variations
W T CCMT MM4 SILVER P 01
CCMT-MM4
Positive rhombic 80°
Show variations
W T CCMT MK4 SILVER P 01
CCMT-MK4
Positive rhombic 80°
Show variations
CCMT-FP6-TTG2-P-01
CCMT-FP6
Positive rhombic 80°
Show variations
W T CCMT FK6 SILVER P 01
CCMT-FK6
Positive rhombic 80°
Show variations
W-DI-CCMT-E47-SILVER-P-01
CCMT-E47
Positive rhombic 80°
Show variations
CCGT-MP4-TTG2-P-01
CCGT-MP4
Positive rhombic 80°
Show variations
W T CCGT MM4 SILVER P 01
CCGT-MM4
Positive rhombic 80°
Show variations
W T CCGT MK4 SILVER P 01
CCGT-MK4
Positive rhombic 80°
Show variations
W-T-CCGT-MN2-ANTHRA-POL-P-02-1
CCGT-MN2
Positive rhombic 80°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W-A-391-02-CAPTO-P-01
391.02-KURZ-CAPTO
Reduction adaptor
Show variations
W-A-391-02-CAPTO-P-01
391.02-ZYLINDRISCH-CAPTO
Reduction adaptor
Show variations
W A 391 02 CAPTO P 01
391.02-KONISCH-CAPTO
Reduction adaptor
Show variations
W A NC2000 CAPTO P 01
NC2000
Clamping units
Show variations
W A 2085 CAPTO P 01
R/LC2085-VIERKANT
Clamping units
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W-A-2060VDI-CAPTO-P-02
R/LC20 GERADE-VDI
VDI DIN 69880 clamping units
Show variations
W A 2060VDI CAPTO P 01
R/LC20 ABGEWINKELT-VDI
VDI DIN 69880 clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-DI-EB211-KKH-SILBER-P-01
EB100-RB-CAR-ARS-CC
ARS boring cartridge CC.. indexable insert
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-DI-EB211-KKH-SILBER-P-01
EB100-RB-CAR-ARS-CC
ARS boring cartridge CC.. indexable insert
Show variations
