Products Cutting tools Holemaking Boring and precision boring Precision boring Precision XT Dc=19-167mm Precision XT Capto Dc=35-56mm CC06.. 4063464464920
Precision boring tool

B5115-044-056-C4-CC06 NEW 2022

EAN-code: 4063464464920
D-countersink-fine-02-Icon D-countersink-fine-back-02-Icon
D-Dc19-167-Icon D-M-Z1-Icon Kappa-92-Icon
Diameter adjustment for mm and inch measurement unit
P
M
K
N
S
H
O
VAT 0% 1342,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

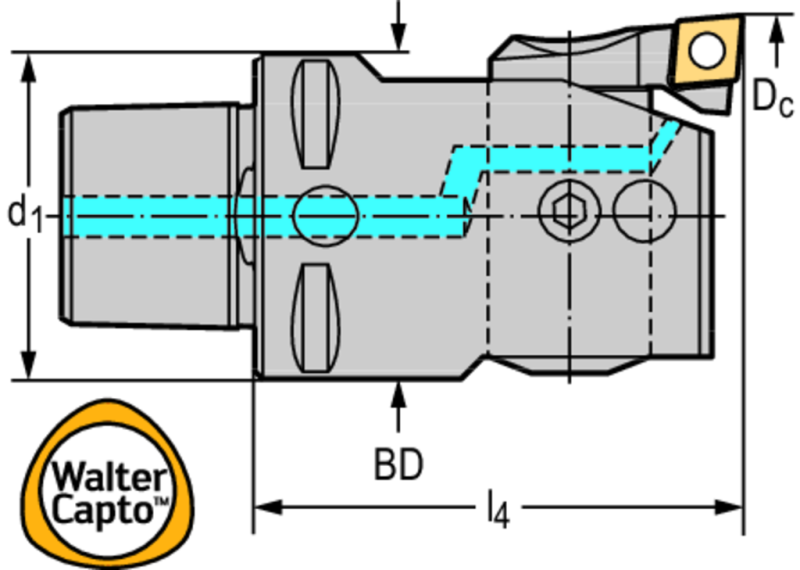

W DI B5115 C CC06 D 01
Enlarge
Description Symbol Value
Connection size code
d1
C4
Cutting edge diameter
Dc
44 mm
Body diameter
BD
40 mm
Functional length
l4
56 mm
Tool designation
Designation
B5115-044-056-C4-CC06
Possible indexable inserts
Type
CC .. 0602 ..
Weight
WT
0,5 kg
