Products Cutting tools Holemaking Boring and precision boring Precision boring Precision XT Dc=19-167mm Precision XT Capto Dc=55-167mm TC11.. 4063464330232
Precision boring tool

B5115-136-167-C8-TC11 NEW 2022

EAN-code: 4063464330232
D-countersink-fine-02-Icon D-countersink-fine-back-02-Icon
D-Dc19-167-Icon D-M-Z1-Icon Kappa-92-Icon
Diameter adjustment for mm and inch measurement unit
P
M
K
N
S
H
O
VAT 0% 1342,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

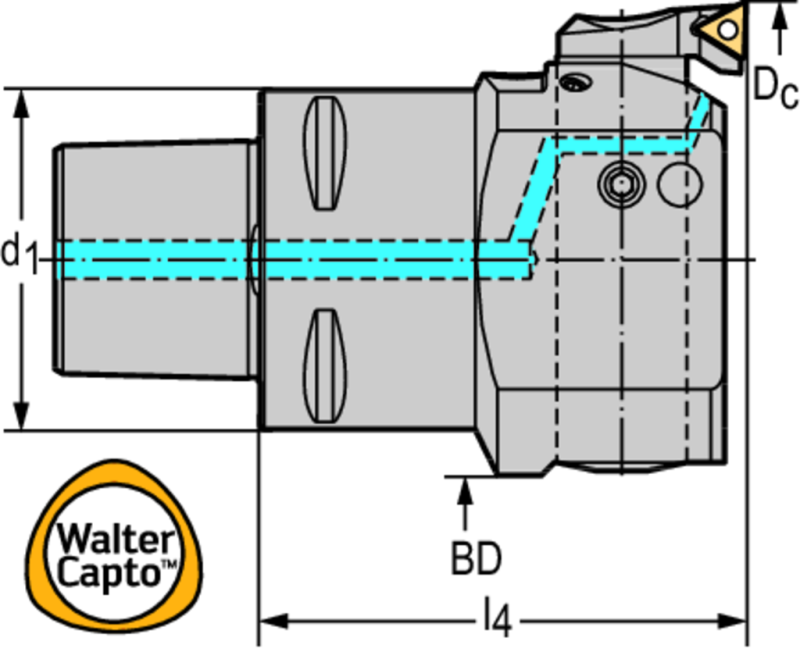

W DI B5115 C TC11 D 01
Enlarge
Description Symbol Value
Connection size code
d1
C8
Cutting edge diameter
Dc
136 mm
Body diameter
BD
130 mm
Functional length
l4
1 mm
Tool designation
Designation
B5115-136-167-C8-TC11
Possible indexable inserts
Type
TC .. 1102 ..
Weight
WT
4,9 kg
Compatible products
Products
Adaptors
Accessories
Assembly parts
TCMT-FW4-TTG2-WIPER-P-01
TCMT-FW4
Positive triangular 60°
Show variations
W T TCGT FP2 CU P 01
TCGT-FP2
Positive triangular 60°
Show variations
TCGW-TS-3-CBN-P-MV-AD
TCGW_TS-3
CBN – Positive triangular 60°
Show variations
W T TCMW RK6 SILVER P 01
TCMW-RK6
Positive triangular 60°
Show variations
TCMT-FP6-TTG2-P-01
TCMT-FP6
Positive triangular 60°
Show variations
W T TCMT FM6 SILVER P 01
TCMT-FM6
Positive triangular 60°
Show variations
W T TCMT FK6 SILVER P 01
TCMT-FK6
Positive triangular 60°
Show variations
TCMT-FP4-TTG2-P-01
TCMT-FP4
Positive triangular 60°
Show variations
W T TCMT FM4 SILVER P 01
TCMT-FM4
Positive triangular 60°
Show variations
W-T-TCGT-FN2-ANTHRA-POL-P-02-1
TCGT-FN2
Positive triangular 60°
Show variations
W T TCGT FM2 SILVER P 01
TCGT-FM2
Positive triangular 60°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
EB736 P 01
EB700-FB-EXTENSION
Precision XT - Extension
Show variations
EB714 TC09 GOLD P 01
EB700-FB-CAR-TC
Precision boring XT cartridge TC.. indexable insert
Show variations
B5115 055 070 C5 B P 01
B5115-C-GK
Precision boring tool – basic body
Show variations
P
M
K
N
S
H
O
