Products Cutting tools Holemaking Boring and precision boring Precision boring Precision XT Dc=69-167mm weight reduced Precision XT Capto Dc=69-167mm CC09.. 4063464465101
Fine Lightweight boring tool

B5125-069-087-C5-CC09 NEW 2022

EAN-code: 4063464465101
D-countersink-fine-02-Icon D-countersink-fine-back-02-Icon
D-Dc69-167-Icon D-LWS-Icon D-M-Z1-Icon Kappa-92-Icon
Weight reduced (LWS) Diameter adjustment for mm and inch measurement unit
P
M
K
N
S
H
O
VAT 0% 1699,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

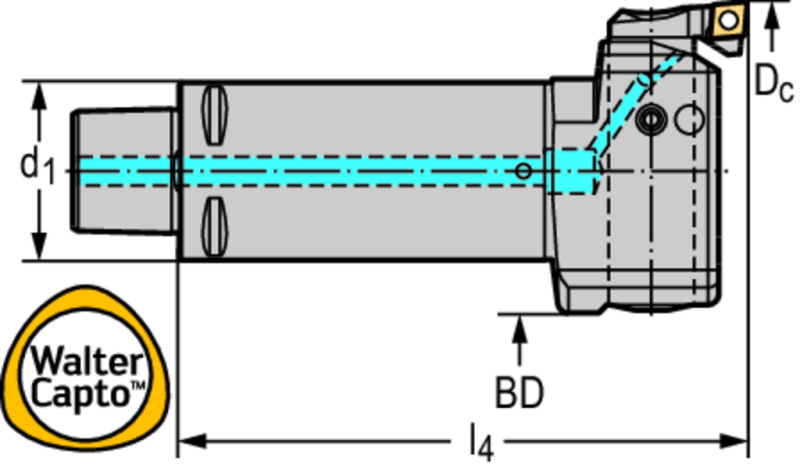

W DI B5125 C CC09 D 01
Enlarge
Description Symbol Value
Connection size code
d1
C5
Cutting edge diameter
Dc
69 mm
Body diameter
BD
63 mm
Functional length
l4
154 mm
Tool designation
Designation
B5125-069-087-C5-CC09
Possible indexable inserts
Type
CC .. 09T3 ..
Weight
WT
1,4 kg
Compatible products
Products
Adaptors
Accessories
Assembly parts
CCMT-FW4-TTG2-WIPER-P-01
CCMT-FW4
Positive rhombic 80°
Show variations
W T CCGT FP2 CU P 01
CCGT-FP2
Positive rhombic 80°
Show variations
W T CCMW RK6 SILVER P 01
CCMW-RK6
Positive rhombic 80°
Show variations
CCMT-FP6-TTG2-P-01
CCMT-FP6
Positive rhombic 80°
Show variations
W T CCMT FM6 SILVER P 01
CCMT-FM6
Positive rhombic 80°
Show variations
W T CCMT FK6 SILVER P 01
CCMT-FK6
Positive rhombic 80°
Show variations
CCMT-FP4-TTG2-P-01
CCMT-FP4
Positive rhombic 80°
Show variations
W T CCMT FM4 SILVER P 01
CCMT-FM4
Positive rhombic 80°
Show variations
CCGW-TM-2-CBNBR-P-01
CCGW_TS-2
CBN – Positive rhombic 80°
Show variations
W-T-CCGT-FN2-ANTHRA-POL-P-02-1
CCGT-FN2
Positive rhombic 80°
Show variations
W T CCGT FM2 SILVER P 01
CCGT-FM2
Positive rhombic 80°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W-A-391-02-CAPTO-P-01
391.02-ZYLINDRISCH-CAPTO
Reduction adaptor
Show variations
W A 391 02 CAPTO P 01
391.02-KONISCH-CAPTO
Reduction adaptor
Show variations
W A NC2000 CAPTO P 01
NC2000
Clamping units
Show variations
W A 2085 CAPTO P 01
R/LC2085-VIERKANT
Clamping units
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W-A-2060VDI-CAPTO-P-02
R/LC20 GERADE-VDI
VDI DIN 69880 clamping units
Show variations
W A 2060VDI CAPTO P 01
R/LC20 ABGEWINKELT-VDI
VDI DIN 69880 clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
EB736 P 01
EB700-FB-EXTENSION
Precision XT - Extension
Show variations
EB717 CC09 GOLD P 01
EB700-FB-CAR-CC
Precision boring XT cartridge CC.. indexable insert
Show variations
B5125 086 107 C5 B P 01
B5125-C-GK
Precision XT Lightweight boring tool – Basic body
Show variations
