Products Cutting tools Holemaking Boring and precision boring Boring Boring XT Dc=148-620mm Boring XT Dc=148-300mm P4.. Boring XT P4.. 4063464331161

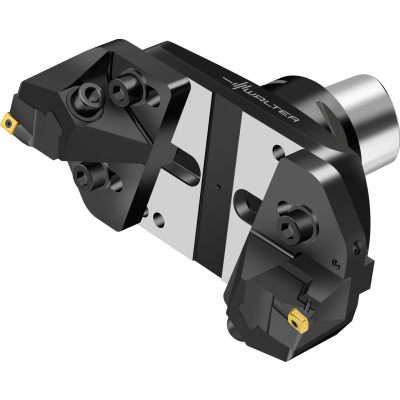

Double-edged boring tool

B5560-148-200-C8-P400 NEW 2022

EAN-code: 4063464331161
D-countersink-rough-arrow-Icon D-rough-surface-Icon
D-Dc148-620-Icon D-M-Z2-Icon Kappa-90-Icon
Basic body/bridge can also be used with B5120 Symmetrical, asymmetrical and axial-radial offset rough boring (ARS)
P
M
K
N
S
H
O
VAT 0% 1817,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

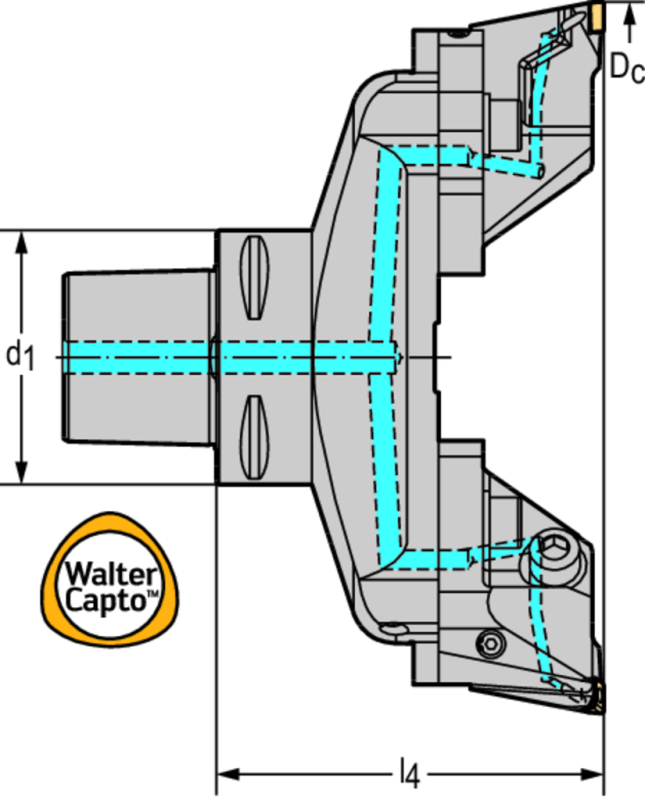

W DI B5560 C P400 1 D 01
Enlarge
Description Symbol Value
Connection size code
d1
C8
Cutting edge diameter
Dc
148 mm
Functional length
l4
122 mm
Tool designation
Designation
B5560-148-200-C8-P400
Possible indexable inserts
Type
P4160-2R ..
Weight
WT
7 kg
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI P4460 G88 WK10 P 01
P4460-G88
Tangential rhombic
Show variations
W DI P4160 2R04 E47 P 01
P4160-E47
Tangential rhombic
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
HSK DIN 69893-1 A master
Show variations
W A 2090 CAPTO P 01
R/LC2090
Clamping units
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Extension
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Extension
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
MAS-BT JIS B 6339 AD/B master
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
DIN 69871 AD/B master
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
DIN 69871 AD/B master
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
EB728 P400 GOLD P 01
EB700-RB-CAR-P4
Boring XT cartridge P4... indexable insert
Show variations
EB724 P 01
EB700-RB-SLIDE
Boring XT - Cartridge slide
Show variations
B5120 198 000 C8 B P 01
B5120-C-GK-1
Precision boring tool – basic body
