Products Cutting tools Turning ISO turning Turning toolholders Negative basic shape RNGN for ceramic Approach angle 0° CRSN – Rigid clamping with prec. cool. CRSNL-P 0928422912
Shank tool - Rigid clamping

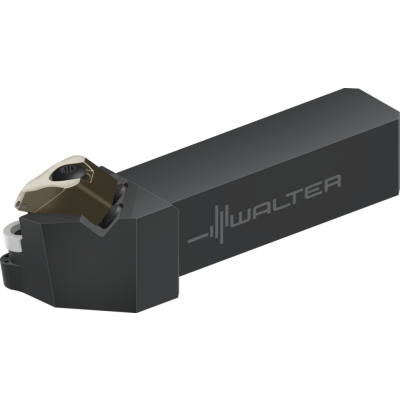

CRSNL2525X12-P

EAN-code: 0928422912
T-Ex-xRSN-Icon
PointCool-Icon T-WSP-RN-ADV-Icon
For ceramic indexable inserts Precision cooling
VAT 0% 255,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-CRSNL-P-ISO-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Orthogonal rake angle
γ
-6 °
Shank height
h = h1
25 mm
Inclination angle
λs
-6 °
Overall length
l1
13 mm
Projection length
l4
38,5 mm
Tool designation
Designation
CRSNL2525X12-P
Insert seat size
12
Possible indexable inserts
Type
RNGN1207 ..
Functional width
f
32 mm
