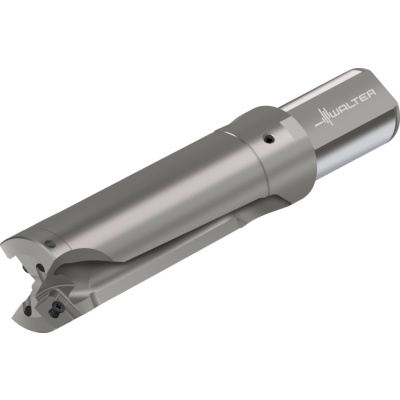

Products Cutting tools Holemaking Solid drilling Drills with indexable inserts 3xDc insert drills D3120 D3120-03-F-PG6, 43mm - 50mm 0675170766
Indexable insert drills

D3120-03-50.00F40-P26 NEW 2021

EAN-code: 0675170766
D-drilling-blind-hole-indexable-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-plungedrilling-Icon D-rough-surface-Icon
D-3xDc-Icon D-M-Z1-Icon
P
M
K
N
S
H
O
VAT 0% 606,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W DI D3120 03 D 01
Enlarge
Description Symbol Value
Number of indexable inserts
No. of inserts
2 PCE
Cutting edge diameter
Dc
50 mm
Connection diameter
d1
40 mm
Flange diameter
d4
5 mm
Maximum projection length
l4
190 mm
Shank length
l5
7 mm
Cutting edge length
Lc
150 mm
Tool designation
Designation
D3120-03-50.00F40-P26
Possible indexable inserts
Type
P284 . S-6N- ..
Weight
WT
2,33 kg
