Products Cutting tools Holemaking Solid drilling Drills with indexable inserts 4xDc insert drills D3120 D3120-04-F-PG5, 37mm - 42mm 0853768766
Indexable insert drills

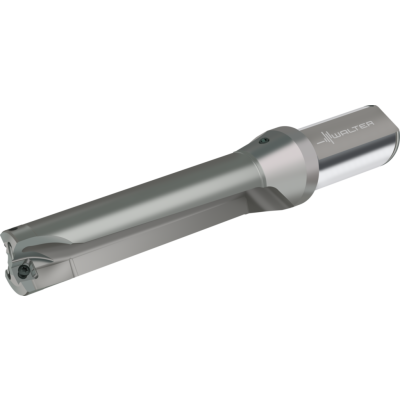

D3120-04-39.00F40-P25

EAN-code: 0853768766
D-drilling-blind-hole-indexable-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-plungedrilling-Icon D-rough-surface-Icon
D-4xDc-Icon D-M-Z1-Icon
P
M
K
N
S
H
O
VAT 0% 596,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W-DI-D3120-04-D-01
Enlarge
Description Symbol Value
Number of indexable inserts
No. of inserts
2 PCE
Cutting edge diameter
Dc
39 mm
Connection diameter
d1
40 mm
Flange diameter
d4
5 mm
Maximum projection length
l4
196 mm
Shank length
l5
7 mm
Cutting edge length
Lc
156 mm
Tool designation
Designation
D3120-04-39.00F40-P25
Possible indexable inserts
Type
P284 . S-5N- ..
Weight
WT
1,74 kg
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI P2840S E77 ANTHRA POL P 01
P2840S-E77
Square
Show variations
P
M
K
N
S
H
O
W-DI-P2841S-E67-TTG-PVD-P-01
P2841S - E67
Square
Show variations
W-DI-P2841S-E57-TTG-PVD-P-01
P2841S - E57
Square
Show variations
W-DI-P2841S-A57-TTG-PVD-P-01
P2841S - A57
Square
Show variations
W-DI-P2840S-E67-TTG-PVD-P-01
P2840S - E67
Square
Show variations
W-DI-P2840S-A57-TTG-PVD-P-01
P2840S - A57
Square
Show variations
W A 391 27 CAPTO P 01
391.27-CAPTO
Adaptor for drilling and reaming tools
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
