Indexable insert drills

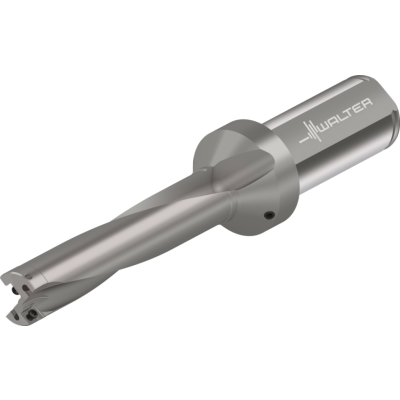

D4120-05-18.50F25-P42 NEW 2023

EAN-code: 4063464576050
D-drilling-blind-hole-indexable-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-plungedrilling-Icon D-rough-surface-Icon
D-5xDc-Icon D-M-Z1-Icon
P
M
K
N
S
H
O
VAT 0% 541,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
Description Symbol Value
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
18,5 mm
Connection diameter
d1
25 mm
Flange diameter
d4
35 mm
Maximum projection length
l4
117,5 mm
Shank length
l5
56 mm
Cutting edge length
Lc
92,5 mm
Tool designation
Designation
D4120-05-18.50F25-P42
Possible indexable inserts
Type
P484 . P-2R- ..
Possible indexable inserts
Type
P484 . C-2R- ..
Weight
WT
0,41 kg
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI P4840C E77 ANTHRA POL P 01
P4840C-E77
Square
Show variations
P
M
K
N
S
H
O
W DI P4840P E77 ANTHRA POL P 01
P4840P-E77
Square
Show variations
P
M
K
N
S
H
O
W-DI-P4841P-E57-TTG-PVD-P-01
P4841P - E57
Square
Show variations
W-DI-P4841P-A57-TTG-PVD-P-01
P4841P - A57
Square
Show variations
W-DI-P4841C-E57-TTG-PVD-P-01
P4841C - E57
Square
Show variations
W-DI-P4841C-A57-TTG-PVD-P-01
P4841C - A57
Square
Show variations
W-DI-P4840P-E67-TTG-PVD-P-01
P4840P - E67
Square
Show variations
W-DI-P4840P-E57-TTG-PVD-P-01
P4840P - E57
Square
Show variations
W-DI-P4840P-A57-TTG-PVD-P-01
P4840P - A57
Square
Show variations
W-DI-P4840C-E67-TTG-PVD-P-01
P4840C - E67
Square
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
W A 391 27 CAPTO P 01
391.27-CAPTO
Adaptor for drilling and reaming tools
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Screws without head
Show variations
