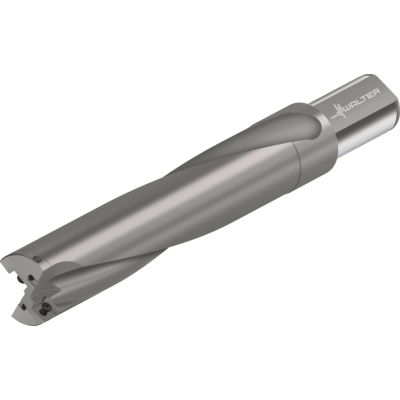

Indexable insert drills
D4120-05-50.00F40-P47
EAN-code: 0818303766
P
M
K
N
S
H
O
VAT 0%
758,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Video
Appendices

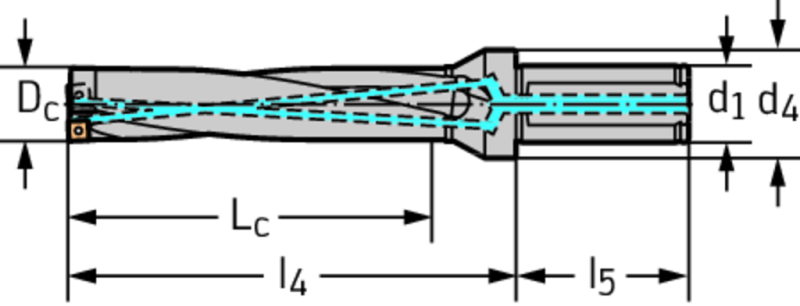

Technical details
Description
Symbol
Value
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
50 mm
Connection diameter
d1
40 mm
Flange diameter
d4
5 mm
Maximum projection length
l4
290 mm
Shank length
l5
7 mm
Cutting edge length
Lc
250 mm
Tool designation
Designation
D4120-05-50.00F40-P47
Possible indexable inserts
Type
P484 . P-7R- ..
Possible indexable inserts
Type
P484 . C-7R- ..
Weight
WT
3,39 kg
