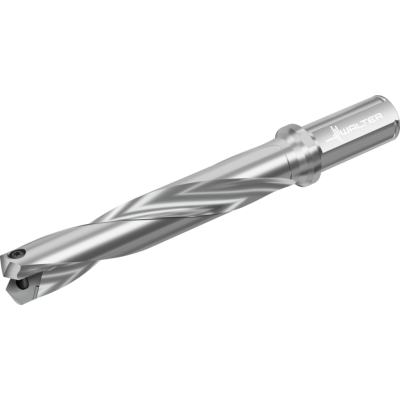

Exchangeable-tip drills

D4140-05-24.00F25-G

EAN-code: 0860178766
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-M-Z2-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 547,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Technical details
Description Symbol Value
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
24 mm
Connection diameter
d1
25 mm
Flange diameter
d4
32 mm
Functional length
l4
165 mm
Shank length
l5
56 mm
Cutting edge length
Lc
124 mm
Tool designation
Designation
D4140-05-24.00F25-G
Possible indexable inserts
Type
P600 . -D24, ..
Weight
WT
0,58 kg
Seat size
G
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI P6006 WTZ P 01
P6006
Exchangeable tip
Show variations
P
M
K
N
S
H
O
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
W A 391 27 CAPTO P 01
391.27-CAPTO
Adaptor for drilling and reaming tools
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
