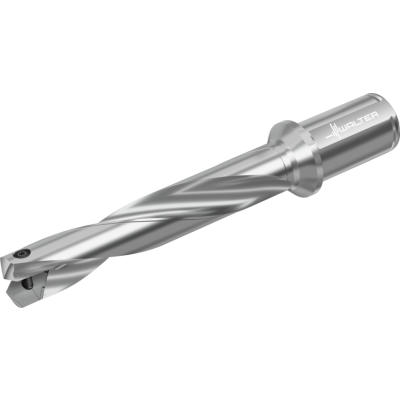

Products Cutting tools Holemaking Solid drilling Drills with replaceable inserts Walter DrionTec 5xDc insert drills D4140-05-F, cylindrical shank with flat 0956578766
Exchangeable-tip drills

D4140-05-34.00F40-N

EAN-code: 0956578766
D-drilling-blind-hole-solid-Icon D-drilling-stack-hole-Icon D-drilling-thru-hole-all-Icon
D-5xDc-Icon D-M-Z2-Icon D-Spitzenw-140-Icon
P
M
K
N
S
H
O
VAT 0% 784,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Video
Appendices
Technical details
W DI D4140 05 D 01
Enlarge
Description Symbol Value
Number of indexable inserts
No. of inserts
1 PCE
Cutting edge diameter
Dc
34 mm
Connection diameter
d1
4 mm
Flange diameter
d4
5 mm
Functional length
l4
226 mm
Shank length
l5
7 mm
Cutting edge length
Lc
176 mm
Tool designation
Designation
D4140-05-34.00F40-N
Possible indexable inserts
Type
P600 . -D34, ..
Weight
WT
1,61 kg
Seat size
N
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI P6006 WTZ P 01
P6006
Exchangeable tip
Show variations
P
M
K
N
S
H
O
W A 391 27 CAPTO P 01
391.27-CAPTO
Adaptor for drilling and reaming tools
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
